Specifications

Product Type Automatic Transfer Switch	Brand ABB	Series TruONE
Application Utilities, manufacturing, water and wastewater

Max. Rated Operation AC Voltage (Ue) 480V	Position of Line Terminals Supplies on Top - Load on Bottom	Rated Impulse Withstand Voltage (Uimp) 12kV
Rated Insulation Voltage (Ui) 1000V	Rated Operating Voltage Main Circuit 200...480V AC	Rated Operation Power at AC-31b (Ie) (200 … 415V AC) 800 A
Rated Short Time Withstand Current (Icw) for 0.1 s 42 kiloampere rms	Power Loss at Rated Operating Conditions per Pole 25W Total 75W	Rated Current (In) 600A
Rated Frequency Main Circuit 50-60Hz	Special Functions Open style	Transition Type Open
No. of Poles 4P

Depth 212mm	Height 313mm	Weight 20.81kg
Width 512mm

Operating Temperature

-25°C to 70°C

IP Rating

Front IP20

Standards and Approvals

UL 1008 / IEC 60947-6-1

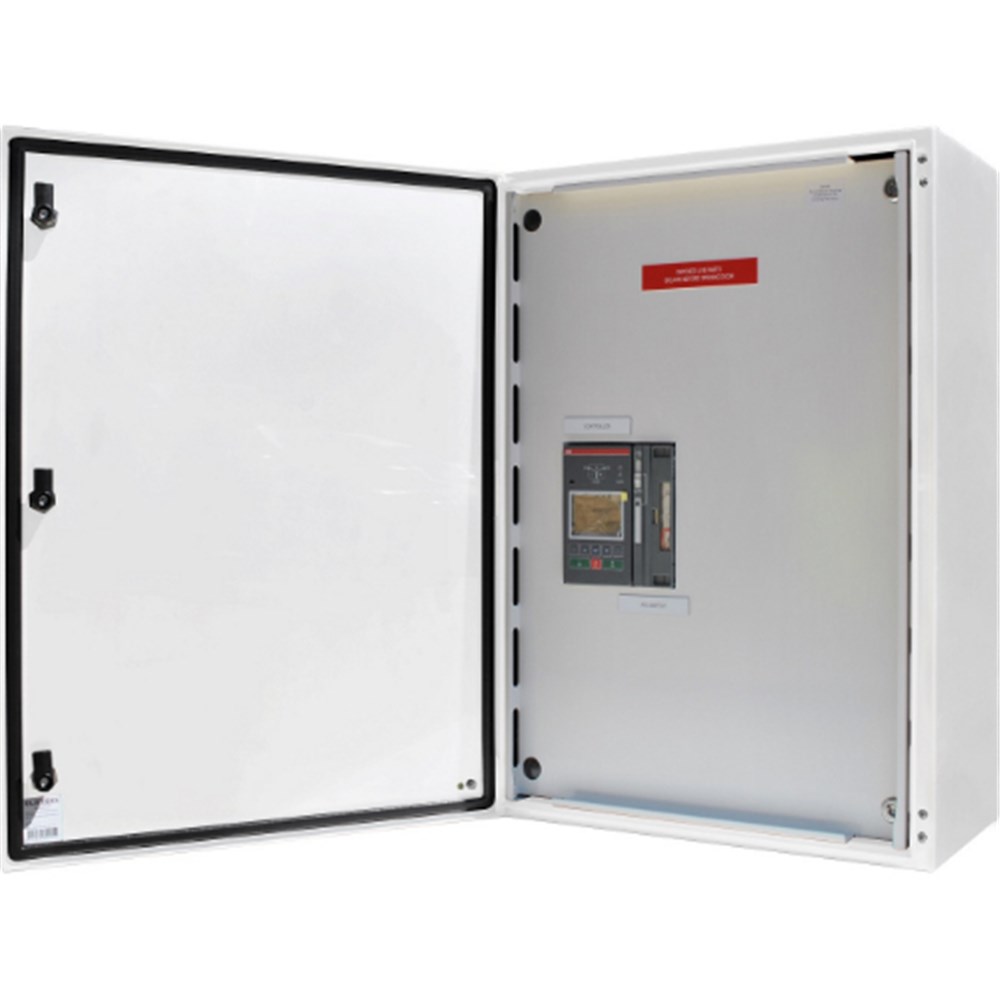

ABB OXA600U3O3QTEG Automatic Transfer Switch 3P+N-P 800A Mild Steel IP65
