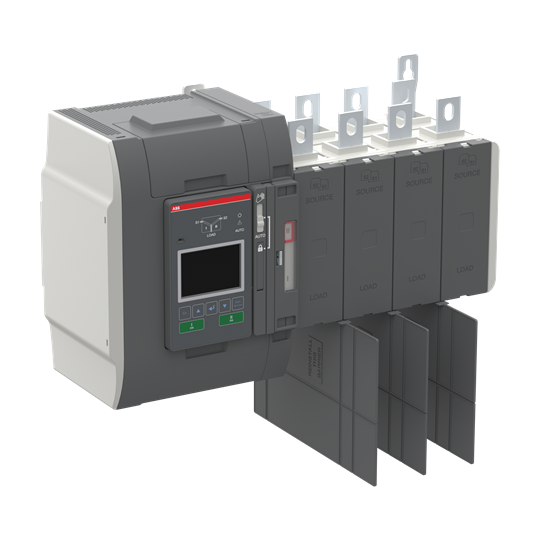

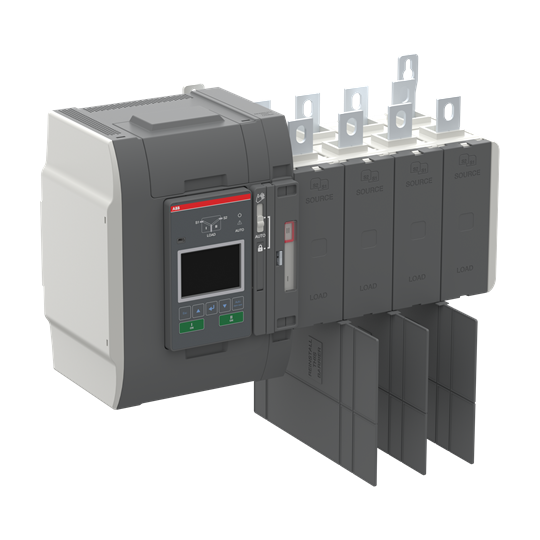

ABB OXA600U3O3QT Automatic Transfer Switch 4-P 800A 200-480VAC IP20

Product Code: OXA600U3O3QT

  • Handles 800A current, ideal for heavy-duty use
  • Compact design: W512 x H313 x L212 mm
  • Meets UL 1008 & IEC60947-6-1 standards
  • Operates at 200-480VAC with IP20 protection
  • Features a Level 3 LCD controller
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
OXA600U

Electrical

Position of Line Terminals
Source 1 and Source 2 on top, load on bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Operation Power at AC-31b (Ie)
800 A (200…415V AC)
Rated Short Time Withstand Current (Icw)
42kA (0.1s)
Power Loss
75000W
Rated Current (In)
800A
Rated Frequency
50/60Hz
Transition Type
Open
No. of Poles
4P
Controller Type
Level 3 (LCD)

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
20.81kg
Width
512mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 1008 / IEC 60947-6-1
