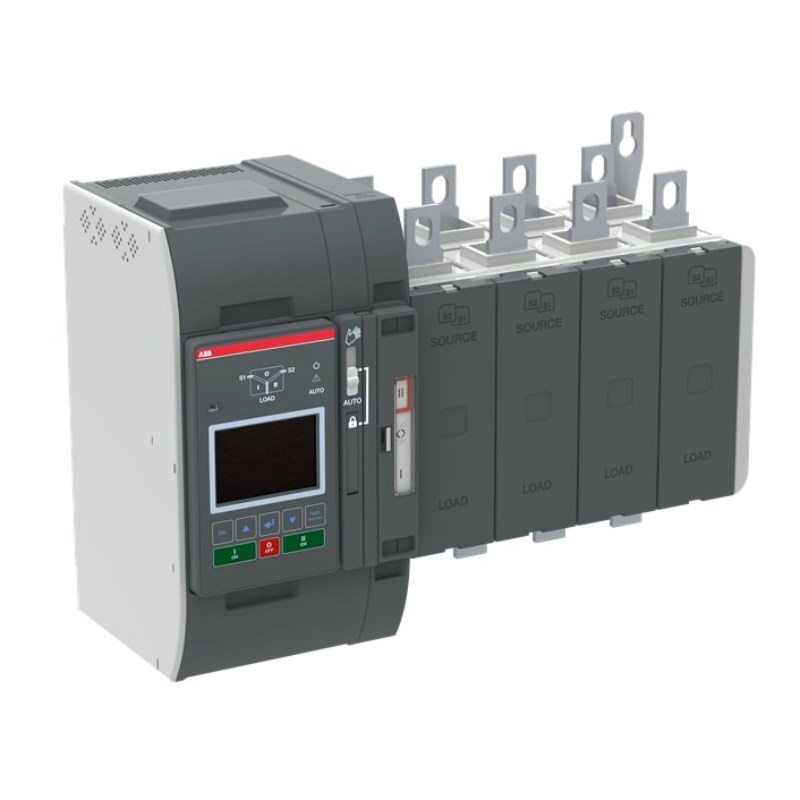

ABB OXA260U3O3QTSS Automatic Transfer Switch 4-P 400A 200-480VAC IP20

Product Code: OXA260U3O3QTSS

  • Handles up to 400 A, suitable for high power needs
  • Compliant with UL1008 and IEC60947-6-1 standards
  • Compact size: 455 mm wide, 305 mm high
  • Operates at 200-480 VAC, versatile voltage range
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Commercial buildings, healthcare, telecommunications

Electrical

Max. Rated Operation AC Voltage (Ue)
480V
Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 200...480V AC
Rated Operation Power at AC-31b (Ie)
(200 … 415V AC) 400 A
Rated Operation Power at AC-32b (Ie)
(200 … 415V AC) 400 A
Rated Short Time Withstand Current (Icw)
for 0.3 s 25 kiloampere rms
Power Loss
at Rated Operating Conditions per Pole 8W Total 24W
Rated Current (In)
260A
Rated Frequency
Main Circuit 50-60Hz
Special Functions
Open style
Transition Type
Open
No. of Poles
4P

Dimensions & Physical Data

Depth
183mm
Height
305mm
Weight
17.13kg
Width
455mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
UL 1008 / IEC 60947-6-1
