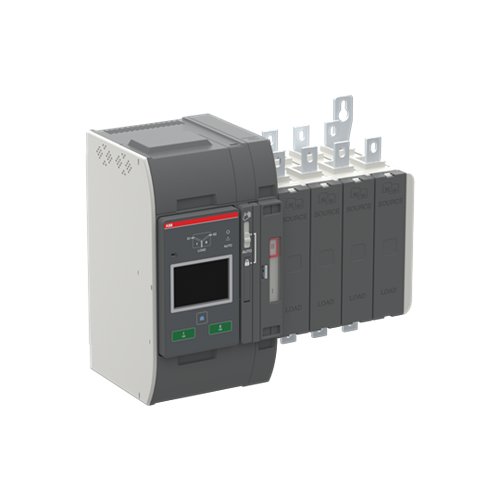

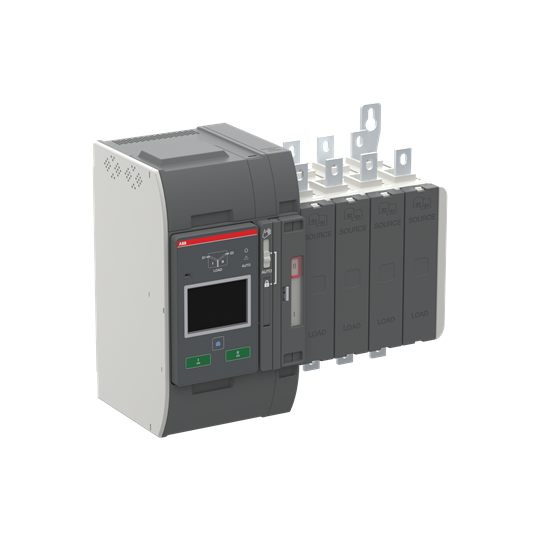

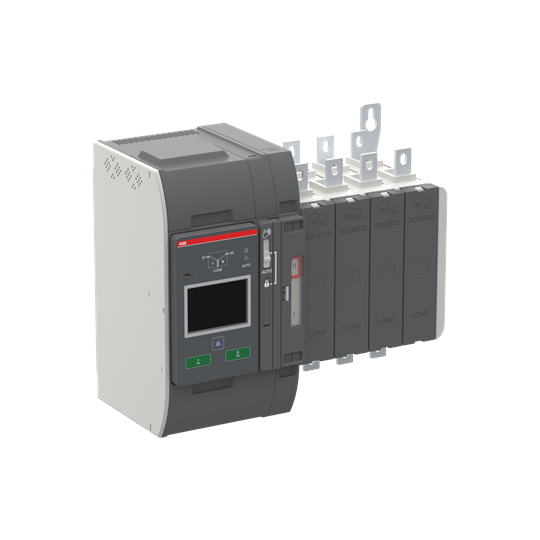

ABB OXA200U3O4QT Automatic Transfer Switch 4-P 250A 200-480VAC IP20

Product Code: OXA200U3O4QT

  • Rated for 250 A current
  • Complies with UL1008, IEC60947-6-1
  • Operates at 200-480 VAC, 50/60 Hz
  • IP20 protection rating
  • Direct mounted handle type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
OXA200U

Electrical

Position of Line Terminals
Source 1 and Source 2 on top, load on bottom
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Operation Power at AC-31b (Ie)
250 A (200…415V AC)
Rated Operation Power at AC-32b (Ie)
250 A (200…415V AC)
Rated Operation Power at AC-33b (Ie)
250 A (200…415V AC)
Rated Short Time Withstand Current (Icw)
18kA (0.3s)/UL CSA
Power Loss
17400W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Transition Type
Open
No. of Poles
4P
Controller Type
Level 4 (Touch)

Dimensions & Physical Data

Depth
183mm
Height
305mm
Weight
15.27kg
Width
375mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 1008 / IEC 60947-6-1
