Specifications

Product Type Automatic Transfer Switch	Brand ABB	Series TruONE
Application Transformer - Transformer, Transformer - Generator

Position of Line Terminals Supplies on Top - Load on Bottom	Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1000V
Rated Operating Voltage 200V to 480V AC	Rated Short Time Withstand Current (Icw) 65000A	Power Loss 69W
Rated Current (In) 1200A	Rated Frequency 50/60Hz	Special Functions Open style
Transition Type Open	Mechanical Life 3050 cycles	No. of Poles 4P

Padlockable

Padlockable to prevent automatic and manual operation

Depth 212mm	Height 359mm	Weight 36.61kg
Width 712mm

Rated Surrounding Temperature Without Derating

40°C

Operating Temperature

-25°C to 70°C

IP Rating

IP20

Standards and Approvals

UL 1008, IEC 60947-6-1

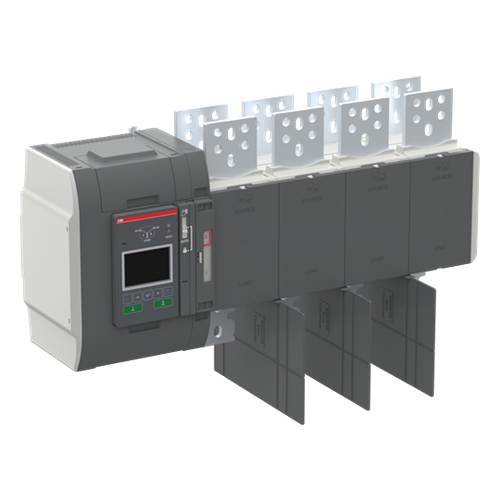

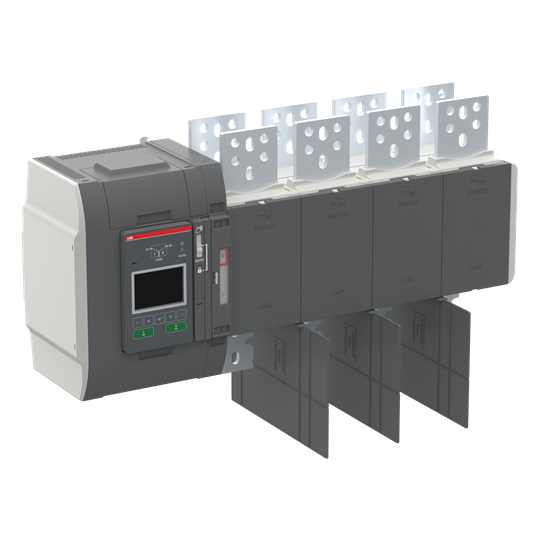

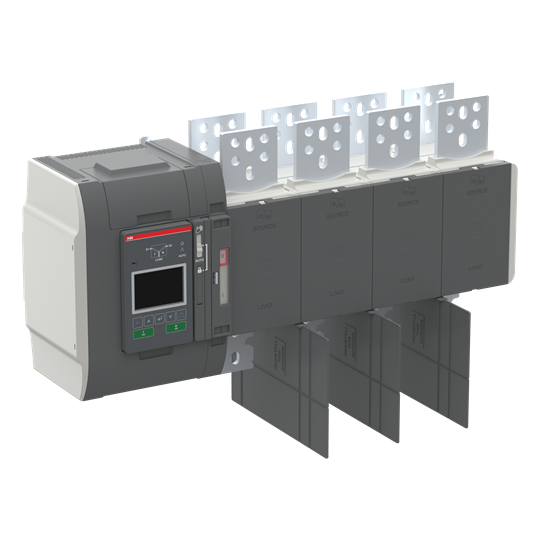

ABB OXA1200U3O3QT Automatic Transfer Switch 4-P 1600A 200-480VAC IP20
