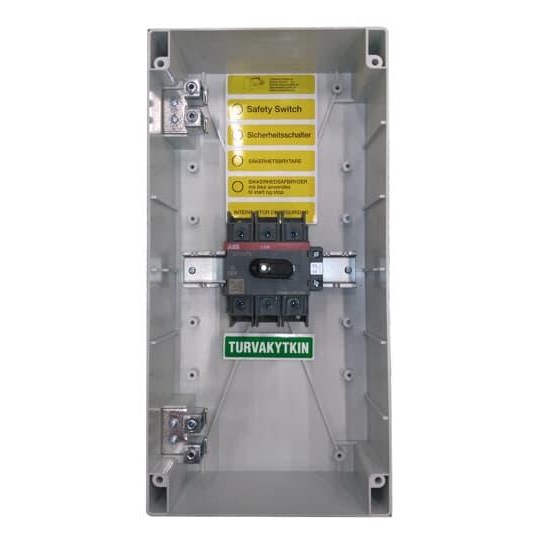

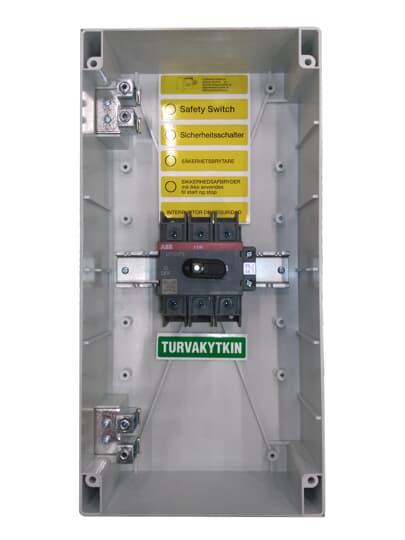

ABB OTP75A3M Safety Switch Plastic IP65 80A 3-P 750VAC

Product Code: OTP75A3M

  • Enclosed design with IP65 protection
  • Supports up to 80 A current
  • Compact size: 200x400x140 mm
  • Operates at 750 VAC and 3 poles
  • Complies with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch
Brand
ABB
Series
OTP
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Breaking Capacity
Icm 3.6kA at 690V AC
Rated Current (In)
80A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
750V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M50 + M16 per side
Colour
Grey enclosure / red-yellow selector handle
Material
Rigid glass-reinforced polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 1 NO auxiliary; 10 - 70 mm²

Dimensions & Physical Data

Depth
140mm
Height
400mm
Weight
2.2kg
Width
200mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE
