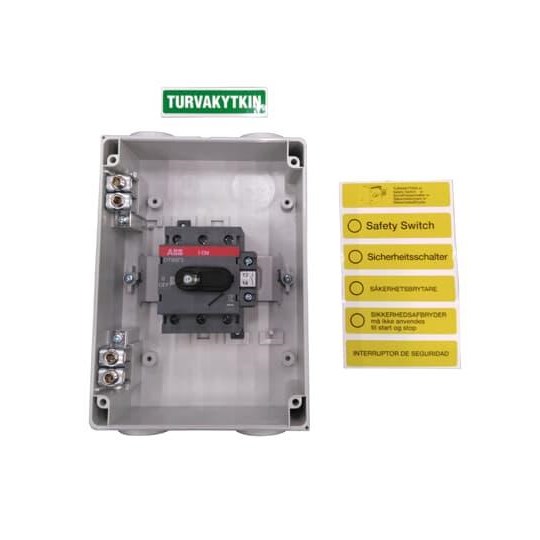

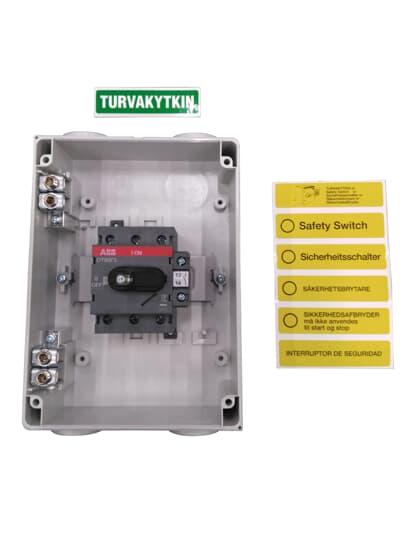

ABB OTP36A3M Safety Switch Plastic IP65 45A 3-P 750VAC

Product Code: OTP36A3M

  • Enclosed switch with 45A rated current
  • Compact size: 145x200x90 mm
  • High protection: IP65 rating
  • Supports cables 1.5-35 sq-mm
  • Complies with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch
Brand
ABB
Series
OTP
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Breaking Capacity
Icm 2.1kA at 690V AC
Rated Current (In)
45A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
750V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M32 + M16 per side
Colour
Grey enclosure / red-yellow selector handle
Material
Rigid glass-reinforced polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 1 NO auxiliary; 1.5 - 35 mm²

Dimensions & Physical Data

Depth
90mm
Height
200mm
Weight
0.9kg
Width
145mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE
