Products

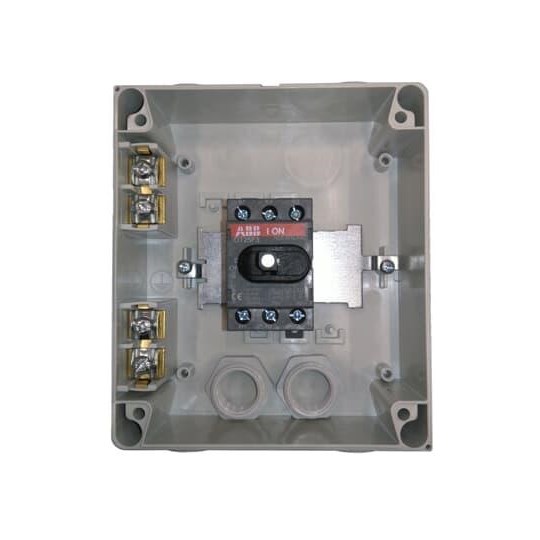

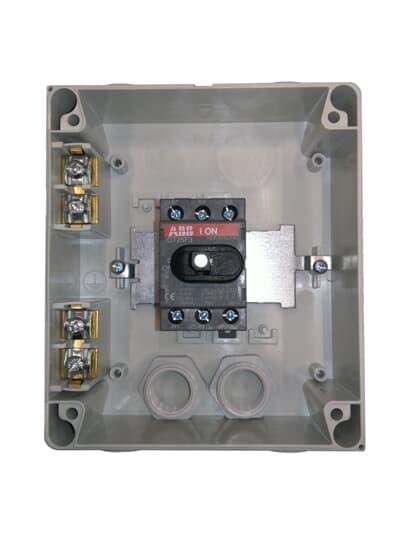

ABB OTP25B3M Enclosed Disconnector Switch Plastic IP65 11A 3-P 750VAC Black Selector Handle

Product Code: OTP25B3M

  • Compact size: 130x150x60 mm
  • Robust IP65 protection rating
  • Rated for 11 A, 750 VAC operations
  • Durable plastic with IK08 impact resistance
  • Complies with IEC and RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed Switch Disconnector
Brand
ABB
Series
OTP
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Breaking Capacity
Icm 0.705kA at 690V AC
Rated Current (In)
20A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
750V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M25 + M16 per side
Colour
Grey enclosure / black selector handle
Material
Rigid glass-reinforced polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 0.75 - 10 mm²

Dimensions & Physical Data

Depth
60mm
Height
150mm
Weight
0.5kg
Width
130mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
