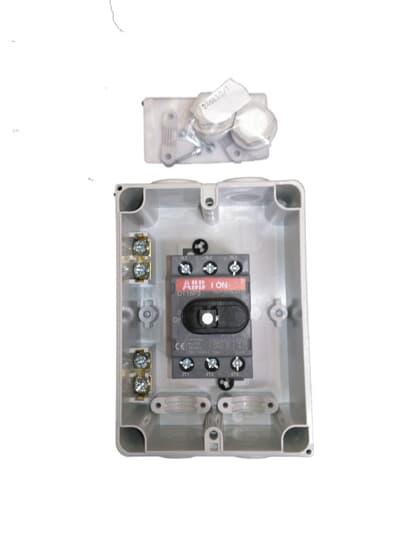

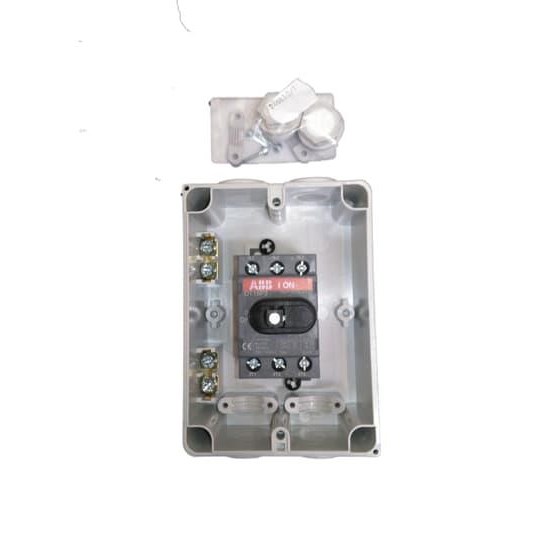

ABB OTP16B3M Enclosed Disconnector Switch Plastic IP65 10A 3-P 750VAC Black Selector Handle

Product Code: OTP16B3M

  • Enclosed switch, 10A, 3-pole design
  • IP65 protection against dust and water
  • Suitable for distribution board install
  • Selector handle included for easy use
  • Meets IEC, RoHS, REACH, CE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed Switch Disconnector
Brand
ABB
Series
OTP
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Breaking Capacity
Icm 0.705kA at 690V AC
Rated Current (In)
16A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
750V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x M20 per side
Colour
Grey enclosure / black selector handle
Material
Rigid glass-reinforced polycarbonate enclosure
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 0.75 - 10 mm²

Dimensions & Physical Data

Depth
60mm
Height
120mm
Weight
0.44kg
Width
85mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1 & -3
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
