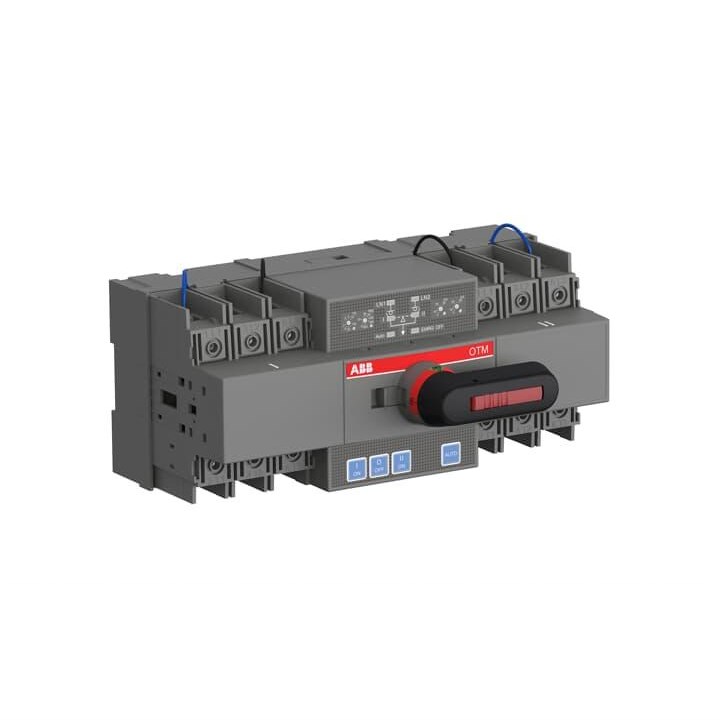

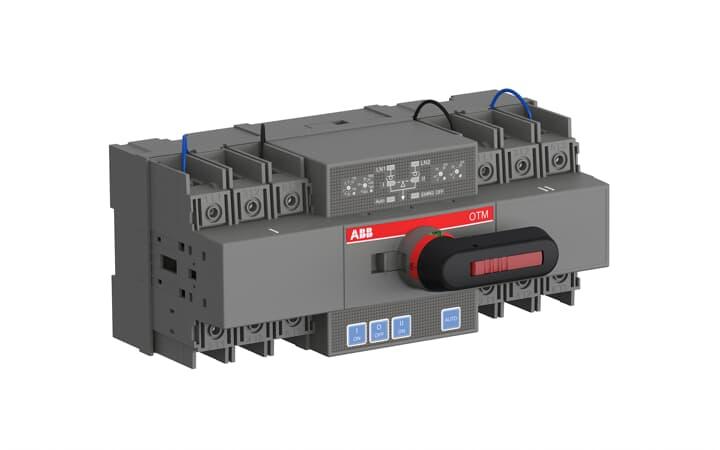

ABB OTM63F2C21D230C Automatic Transfer Switch 2-P 63A 220-240V IP20

Product Code: OTM63F2C21D230C

  • Supports 63 A current capacity
  • Compact size: 233x103 mm
  • Withstands up to 8 kV impulse voltage
  • DIN Rail and base mounting options
  • Screw clamp terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
OTM63F
Application
Network - Network, Network - Genset

Electrical

Max. Rated Operation AC Voltage (Ue)
220-240 V AC
Position of Line Terminals
Top in - Bottom out
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
800 V
Rated Operation Power at AC-23, 400 V
45 kW (220 …240 V)
Rated Operation Power at AC-31b (Ie)
63 A
Rated Operation Power at AC-32b (Ie)
63 A
Rated Operation Power at AC-33b (Ie)
63 A
Rated Operational Current AC21-A (Ie)
63 A
Rated Operational Current AC22-A (Ie)
63 A
Rated Operational Current AC23-A (Ie)
63 A
Rated Short Time Withstand Current (Icw)
2.5 kA (1 s)
Rated Current (In)
63 A
Rated Frequency
50 / 60 Hz
Transition Type
Open
No. of Poles
2P

Dimensions & Physical Data

Depth
131 mm
Height
103 mm
Weight
1.85 kg

Environmental

Rated Surrounding Temperature Without Derating
40 °C
Pollution Degree
3
Storage Temperature
– 25...+ 70 °C
Operating Temperature
– 20...+ 55 °C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1
