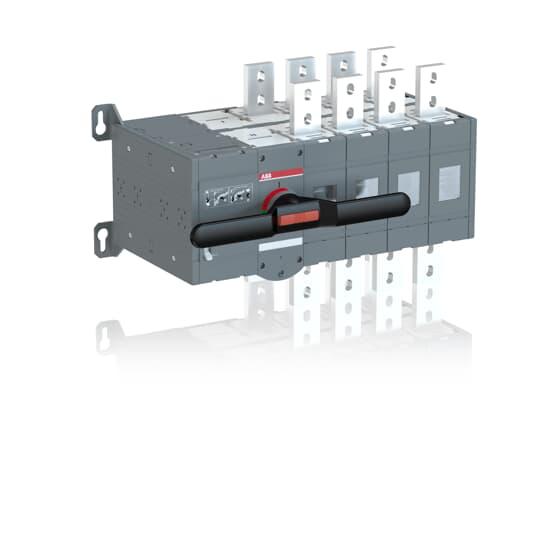

ABB OTM1600E4CM230C Motorized Change-Over Switch 1600A 1000VAC IP20 4-Hole Front Mount 4-P

Product Code: OTM1600E4CM230C

  • Rated current of 1600 A for heavy-duty use
  • Complies with RoHS, REACH, CE, WEEE standards
  • IP20 protection for safety in installations
  • Suitable for distribution board installation
  • Interlockable design enhances security
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Motorized C/O Switch
Brand
ABB
Series
OTM1600E4CM230C
Application
Motorized C / O switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
710kW
Rated Operational Current AC21-A (Ie)
1600A
Rated Operational Current AC22-A (Ie)
1600A
Rated Operational Current AC23-A (Ie)
1600A
Rated Short Time Withstand Current (Icw)
50000A
Power Loss
48W
Transition Type
Open
No. of Poles
4P

Dimensions & Physical Data

Depth
372mm
Height
372mm
Weight
69kg
Width
587mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE
