Specifications

Product Type Automatic Transfer Switch	Brand ABB	Series Compact ATS
Application Commercial buildings, healthcare, infrastructure

Max. Rated Operation AC Voltage (Ue) 240V	Position of Line Terminals Supplies on Top - Load on Bottom	Rated Impulse Withstand Voltage (Uimp) 8kV
Rated Insulation Voltage (Ui) 800V	Rated Operating Voltage Main Circuit 220…240V AC	Rated Operation Power at AC-23, 400 V 45kW
Rated Operational Current AC21-A (Ie) 125A	Rated Operational Current AC22-A (Ie) 125A	Rated Operational Current AC23-A (Ie) 90A
Rated Short Time Withstand Current (Icw) for 1 s 2.5 kiloampere rms	Power Loss at Rated Operating Conditions per Pole 6.3W	Rated Current (In) 125A
Rated Frequency 50/60Hz	Transition Type Open	Mechanical Life 10000
No. of Poles 2P

Depth 131mm	Height 103mm	Weight 1.85kg
Width 233mm

Pollution Degree

Operating Temperature

-25°C to 70°C

IP Rating

Front IP20

Standards and Approvals

IEC 60947-6-1 / IEC 60947-3

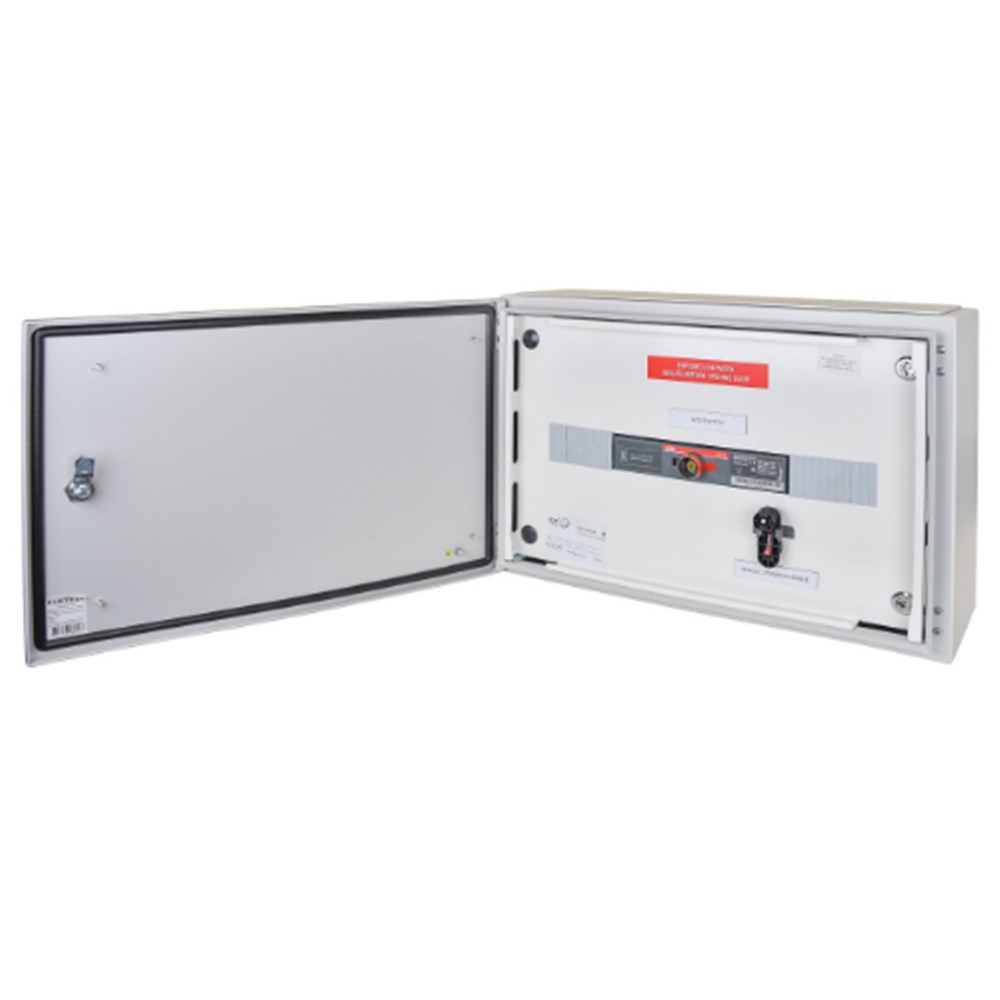

ABB 125A 2P ATS ENCLOSED IN MILD STEEL IP65 GREY 400H X 600W X 200D
