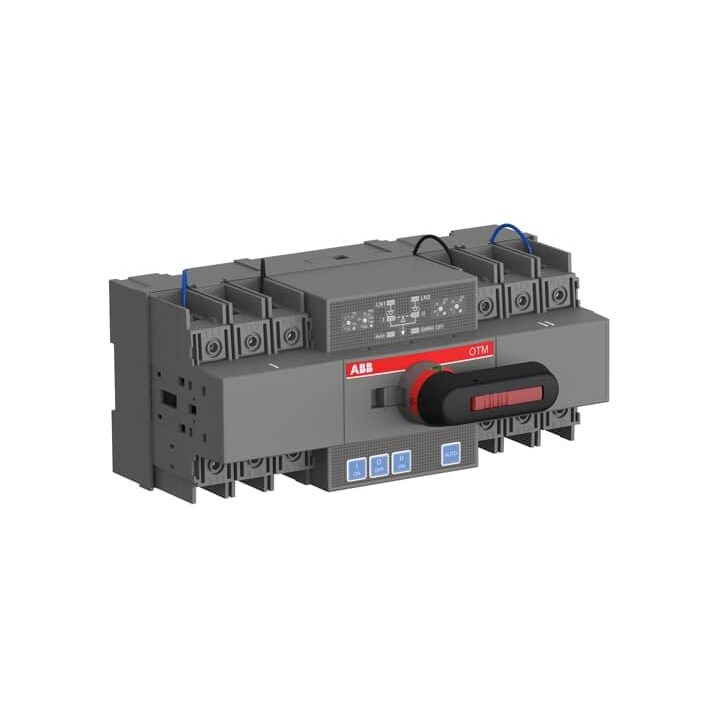

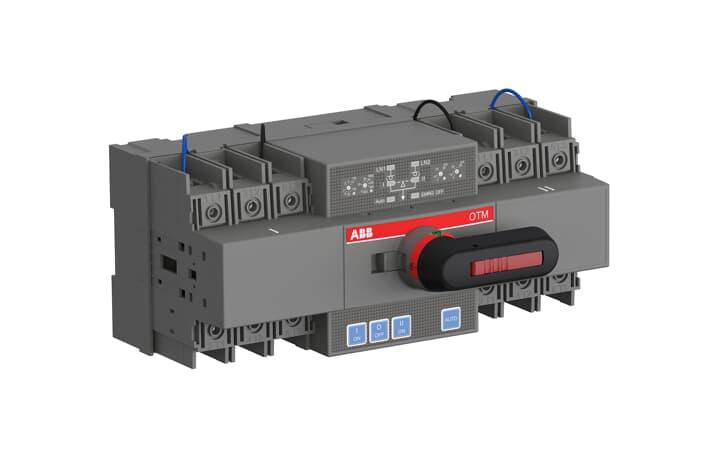

ABB OTM125F2C21D230C Automatic Transfer Switch 2-P 125A 220-240V IP20

Product Code: OTM125F2C21D230C

  • Rated for 125 A current
  • Compact size: 233x131x103 mm
  • Meets ROHS, REACH, CE standards
  • Direct mounted handle design
  • Base/DIN rail mounting options
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
Compact ATS
Application
Network - Network, Network - Genset

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Insulation Voltage (Ui)
800V
Rated Operating Voltage
220V to 240V AC
Rated Operation Power at AC-23, 400 V
380kW
Rated Operational Current AC21-A (Ie)
125A
Rated Operational Current AC22-A (Ie)
125A
Rated Operational Current AC23-A (Ie)
90A
Power Loss
6.3W
Rated Current (In)
125A
Rated Frequency
50/60Hz
Special Functions
Self-supplied unit with adjustable operating parameters
Transition Type
Open
Mechanical Life
10000 cycles
No. of Poles
2P

Dimensions & Physical Data

Depth
131mm
Height
103mm
Width
233mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-25°C to 70°C
Operating Temperature
-20°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-6-1
