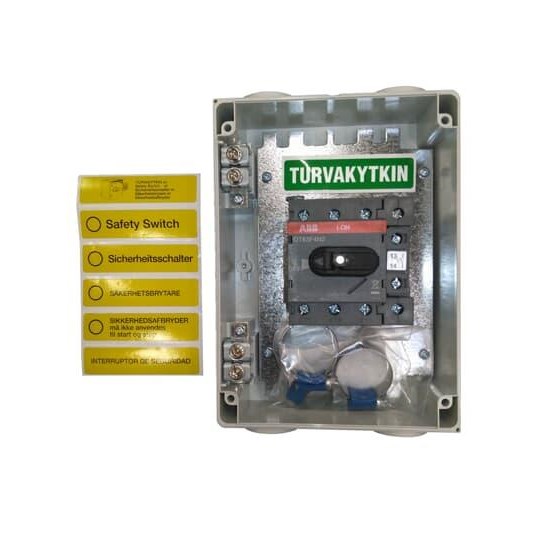

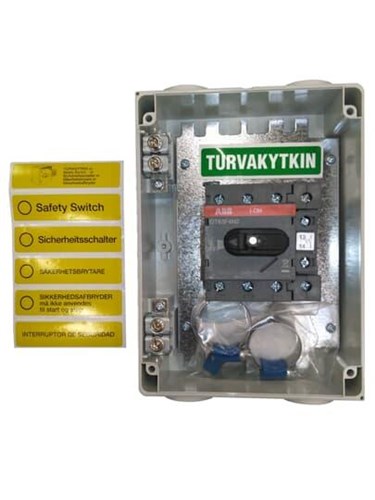

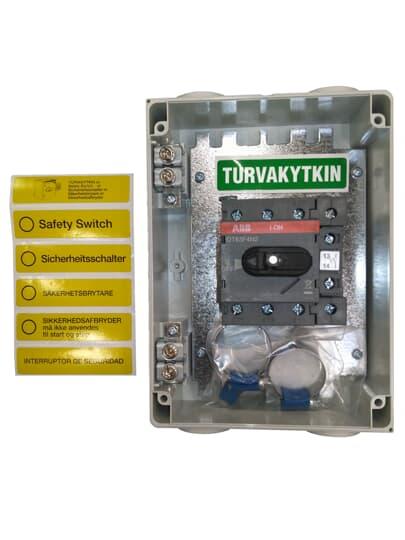

ABB OTE25T4M Emc Safety Switch Plastic IP65 45A 4-P 750VAC

Product Code: OTE25T4M

  • Enclosed design with IP65 protection
  • Supports 45 A current rating
  • Compact size: 145x200x90 mm
  • Compliant with IEC 60947 standards
  • Suitable for cables 1.5-35 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Emc Safety Switch
Brand
ABB
Series
OTE
Application
Outdoor / indoor EMC safety isolation; 5-wire systems

Electrical

Utilization Category
AC-21A / AC-22A / AC-23A
Rated Current (In)
30A (AC-23A at 380–500V); 20A at 690V
Rated Voltage (Ur)
750V main circuit; 415V AC23

Mechanical

Body Style
Plastic enclosure with selector handle
Cable Entry
Top/bottom; 2xM32+M16 per side
Colour
Enclosure RAL 7035; black handle
Indicators
Interlocked cover; defeatable interlocking
Material
Plastic enclosure
Size Code
4P
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Height
200mm
Length
90mm
Weight
0.86kg
Width
145mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3
