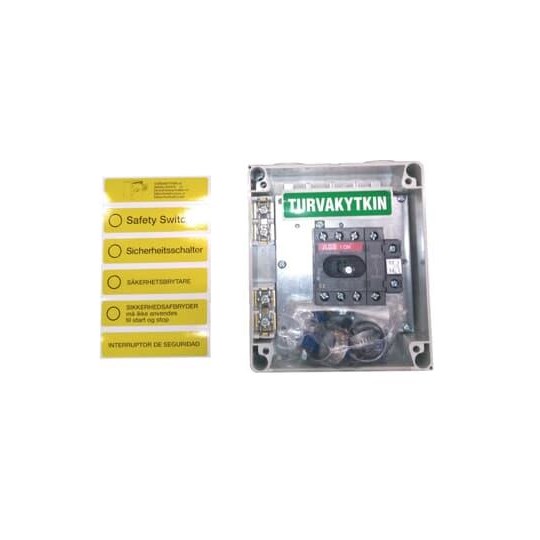

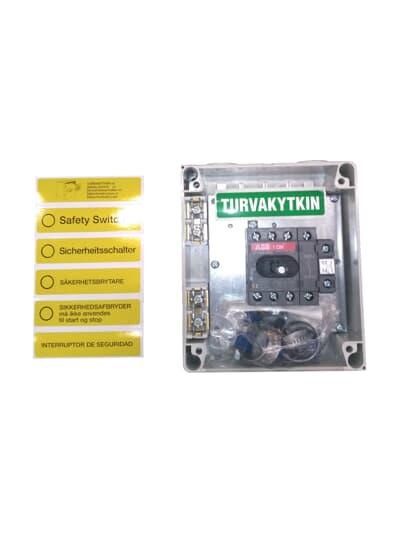

ABB OTE16T4M Emc Safety Switch Plastic IP65 32A 4-P 750VAC

Product Code: OTE16T4M

  • Enclosed switch, 32 A rated current
  • Compact size: 130mm W x 150mm H x 85mm D
  • Complies with IEC standards
  • IP65 protection against dust and water
  • Suitable for cables 0.75-10 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Emc Safety Switch
Brand
ABB
Series
OTE
Application
Outdoor / indoor EMC safety isolation; 5-wire systems

Electrical

Utilization Category
AC-21A / AC-22A / AC-23A
Rated Current (In)
16A (AC-23A at 380–500V); 10A at 690V
Rated Voltage (Ur)
750V main circuit; 415V AC23

Mechanical

Body Style
Plastic enclosure with selector handle
Cable Entry
Top/bottom; 2xM25+M16 per side
Colour
Enclosure RAL 7035; black handle
Indicators
Interlocked cover; defeatable interlocking
Material
Plastic enclosure
Size Code
4P
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Height
150mm
Length
85mm
Weight
0.465kg
Width
130mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3

Documents

IPD Product Catalogue V17
