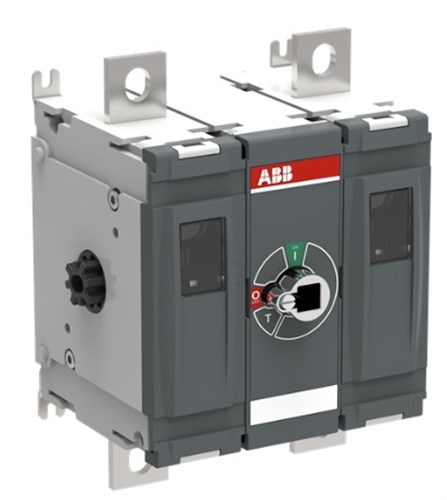

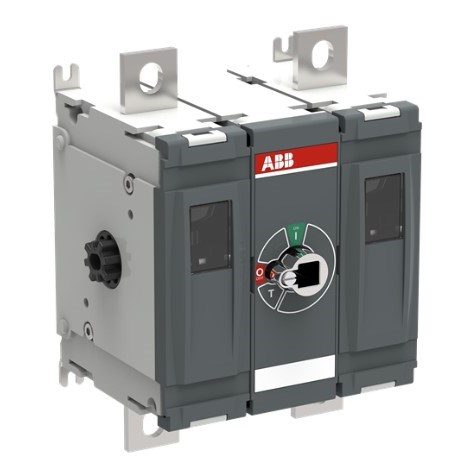

ABB OTDC315FV11-ESS DC Switch-disconnector

Product Code: OTDC315FV11-ESS

  • 40 A DC isolator with 230/400 VAC rating
  • IP20 protection for indoor use
  • Complies with IEC 60947-1, 3 standards
  • Short circuit capacity of 25 kA
  • Compact design: W157.5 x H211 x D135 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Solar energy, utilities, industrial automation

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
10kA for 1 s; 20kA for 0.1 s
Power Loss
per pole 7...8W; total 14...16W
Rated Current (In)
315A
Special Functions
No
Mechanical Life
10000
No. of Poles
2P

Dimensions & Physical Data

Depth
135mm
Height
211mm
Weight
3.5kg
Width
157.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3
