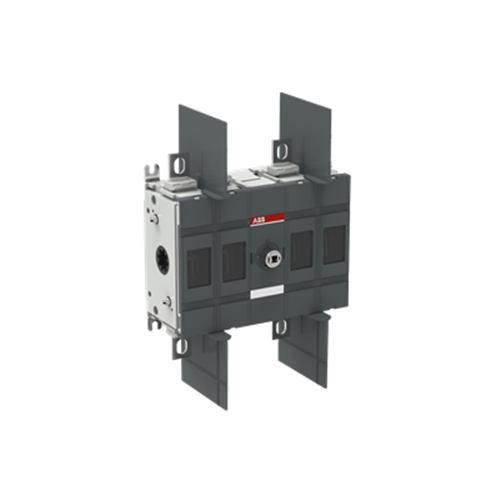

ABB OTDC250E22 DC Switch-Disconnector S1.0 Frame 4-P 250A 1000V IP20

Product Code: OTDC250E22

  • Rated for 250 A, ideal for high current needs
  • Compact size: 185.4 mm width, 262 mm height
  • Meets IEC 60947 standards for safety
  • IP20 protection against solid objects
  • Lug terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Photovoltaic applications

Electrical

Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V DC
Rated Short Time Withstand Current (Icw)
10000A
Power Loss
9.5W
Rated Current (In)
250A
No. of Poles
4P

Dimensions & Physical Data

Weight
1.9kg

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947

Documents

IPD Product Catalogue V17
