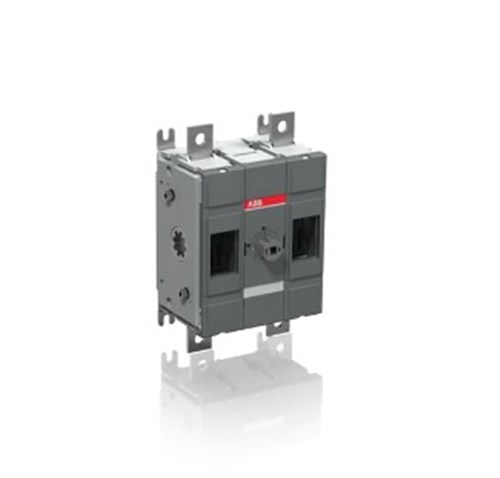

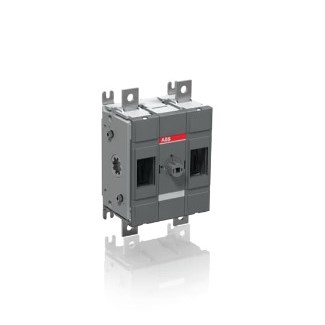

ABB OTDC200E11 DC Switch-Disconnector S1.0 Frame 2-P 200A 1000V IP20

Product Code: OTDC200E11

  • Rated for 200 A current
  • Compact size: 115.5x176x84.5 mm
  • IEC 60947-1, -3 compliant
  • Withstands up to 12 kV impulse voltage
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Photovoltaic applications

Electrical

Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V DC
Rated Short Time Withstand Current (Icw)
10000A
Power Loss
6W
Rated Current (In)
200A
No. of Poles
2P

Dimensions & Physical Data

Weight
1.1kg

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947

Documents

IPD Product Catalogue V17
