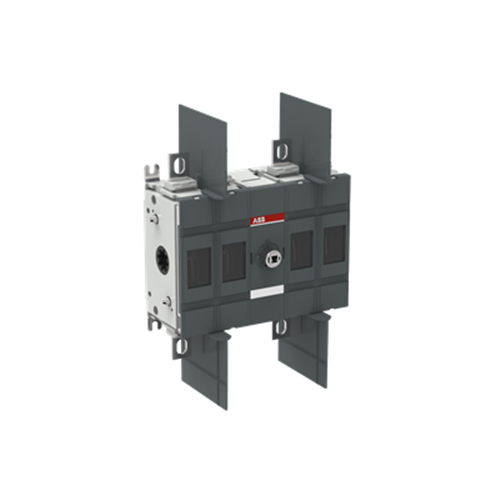

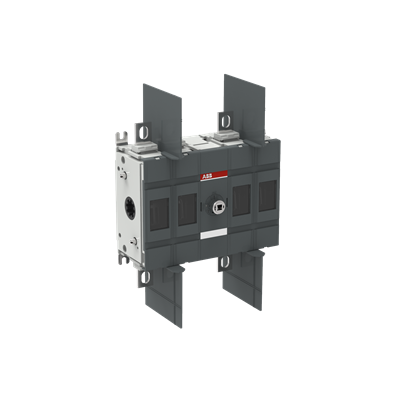

ABB OTDC100E22 Switch-Disconnector IP20 100A 2-P 1000V

Product Code: OTDC100E22

  • Rated current of 100 A
  • Compact size: 185.4mm W x 262mm H x 90.5mm L
  • Meets IEC 60947-1, -3 standards
  • High rated voltage up to 1000 V
  • IP20 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB
Series
S1.0
Application
Photovoltaic

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1000V
Power Loss
8W
Rated Current (In)
100A
Special Functions
No
No. of Poles
4P

Dimensions & Physical Data

Depth
90.5mm
Height
262mm
Weight
2.2kg
Width
185.4mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3, CCC, CE, UKCA, DNV GL
