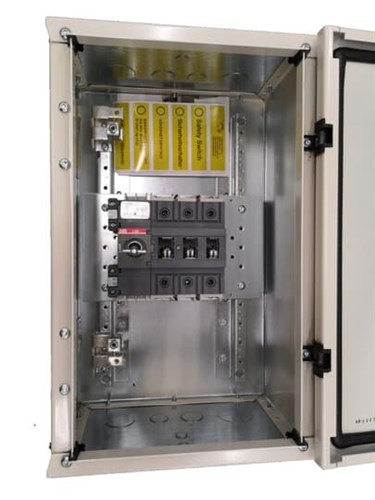

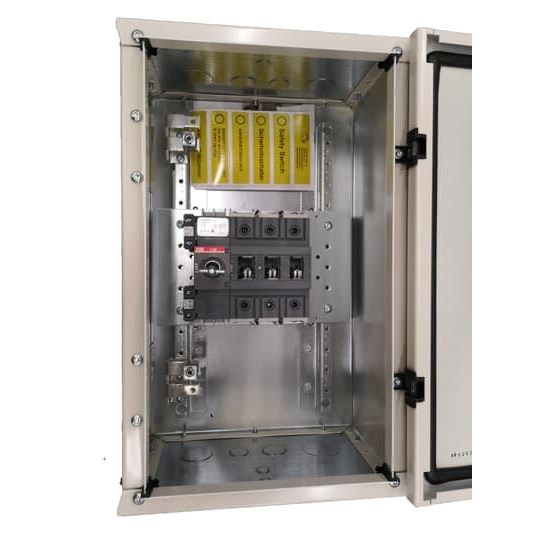

ABB OT90GTUU3TZ Safety Switch IP65 90A 1000VAC Screw Terminal

Product Code: OT90GTUU3TZ

  • Rated for 90A current handling
  • Compact size: 250x400x180 mm
  • IP65 protection against dust and water
  • Durable steel sheet construction
  • Compliant with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
EMC safety switch
Brand
ABB
Series
OT
Application
Outdoor/indoor EMC safety isolation in industrial installations

Electrical

Utilization Category
AC-21A / AC-22A / AC-23A
Rated Current
90 A (AC-23A at 380–690 V)
Rated Voltage
1000 V main circuit; 415 V AC23

Mechanical

Body Style
Steel sheet enclosure with pistol handle
Cable Entry
Top/bottom; blank/blank knock-outs
Colour
Enclosure RAL7032; black handle
Indicators
Interlocked cover; defeatable interlocking
Material
Steel sheet
Size Code
3P
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Height
400 mm
Length
180 mm
Weight
9.4 kg
Width
250 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3

Documents

IPD Product Catalogue V17
