Specifications

Product Type Change - Over Switch	Brand ABB	Series OT80
Application Commercial buildings, Industrial plants, Data centers

Max. Rated Operation AC Voltage (Ue) 750V AC	Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV
Rated Insulation Voltage (Ui) 750V	Rated Operating Voltage 415V	Rated Operation Power at AC-23, 400 V 37kW
Rated Operational Current AC21-A (Ie) 80A	Rated Operational Current AC22-A (Ie) 80A	Rated Operational Current AC23-A (Ie) 75A
Rated Permanent Current at AC-21, 400 V 80A	Rated Short Time Withstand Current (Icw) 1.5kA/1s	Rated Uninterrupted Current (Iu) 80A
Power Loss 4.5W/Pole	Rated Current (In) 80A	Rated Frequency 50Hz to 60Hz
Transition Type Open	No. of Poles 3P

Depth 85mm	Height 92mm	Weight 0.64kg
Width 105mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP20

Standards and Approvals

IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH

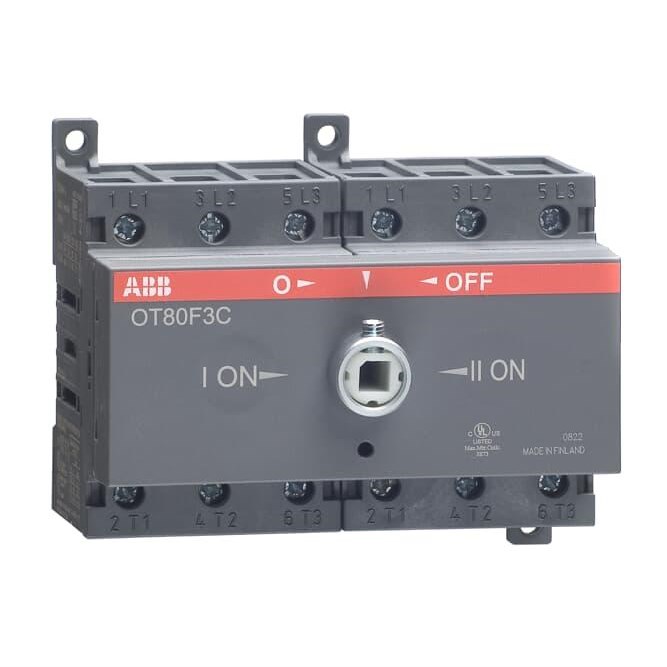

ABB OT80F3C Changeover Switch 80A 415VAC IP20 4-Hole Front Mount 3-P
