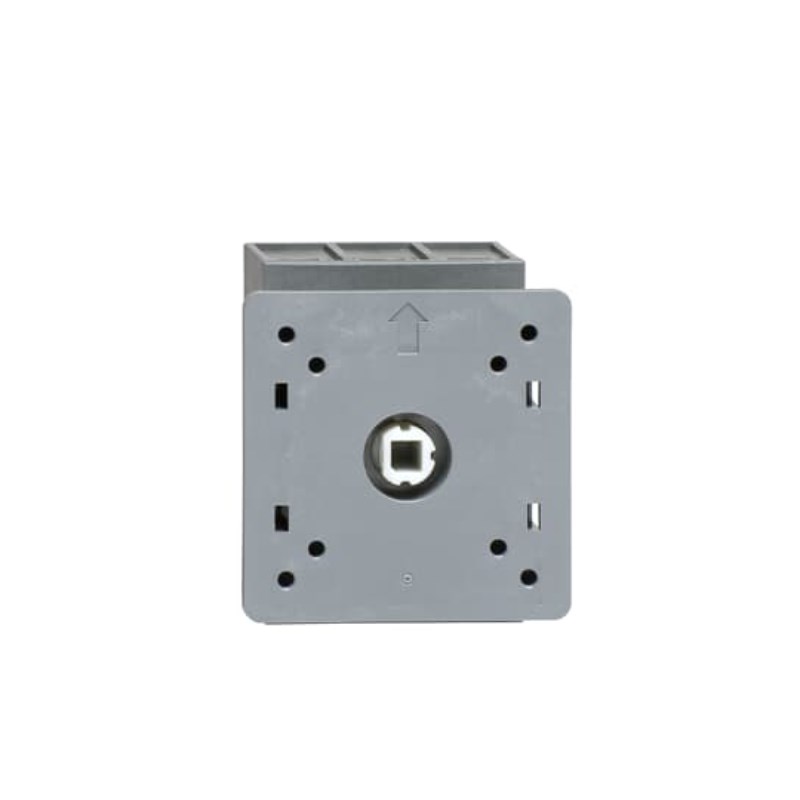

LBS 80A 3P DOOR MOUNT ABB KIT C/W R/Y DOOR HANDLE 4 HOLE FIX IP65, UP TO 35MM2 CABLE

Product Code: OT80D4R3-K

  • Rated current of 80 A for reliable performance
  • Complies with IEC 60947-3, UL 508, CSA C22.2 No. 14
  • Compact size: 65 mm W x 72 mm H x 69 mm D
  • IP20 protection ensures safety in use

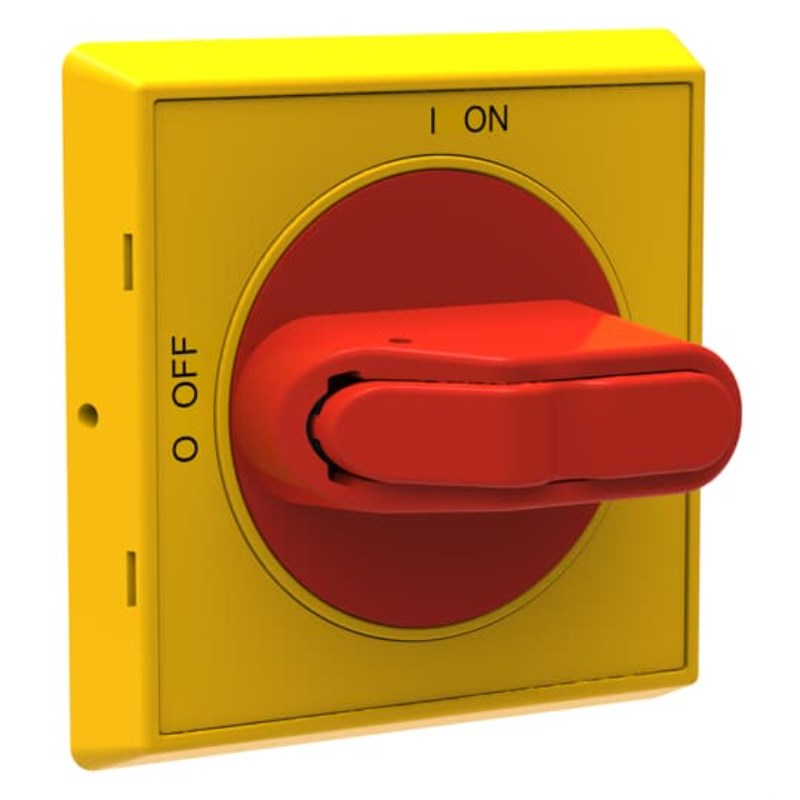

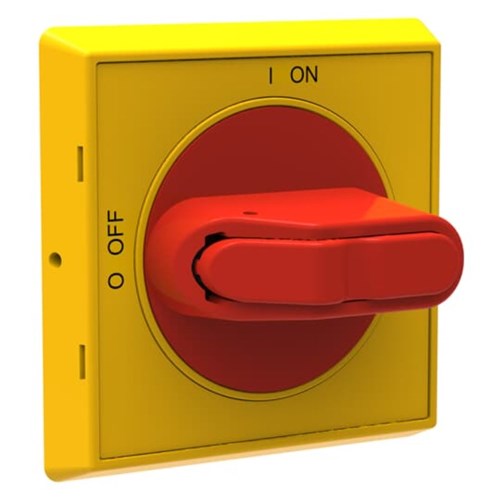

  • Red and yellow selector handle for easy operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Break Switch Kit
Brand
ABB
Series
OT
Application
Manufacturing, commercial buildings, HVAC

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operational Current AC21-A (Ie)
80A
Rated Operational Current AC22-A (Ie)
80A
Rated Operational Current AC23-A (Ie)
75A
Rated Short Time Withstand Current (Icw)
for 1 s 1.5kA
Power Loss
at Rated Operating Conditions per Pole 4.5W
Rated Current (In)
80A
Special Functions
No
Mechanical Life
20000
No. of Poles
3P

Dimensions & Physical Data

Depth
72.5mm
Height
91.5mm
Weight
0.25kg
Width
52.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Accessories & Additional Information

Included Components
Handle and Shaft

Documents

IPD Product Catalogue V17
