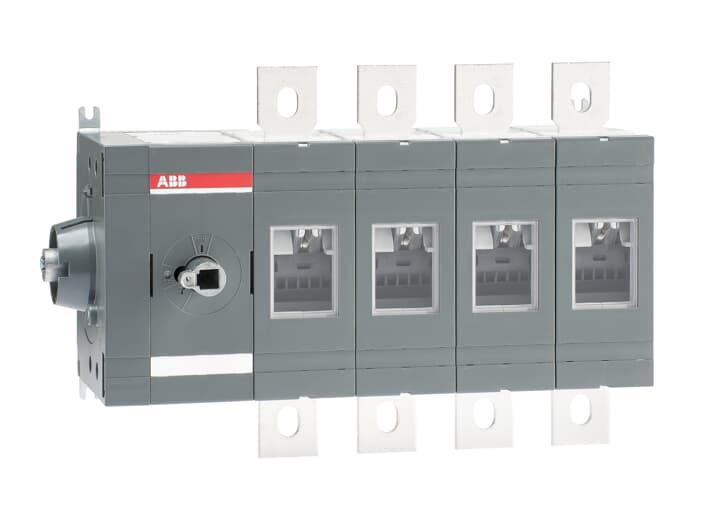

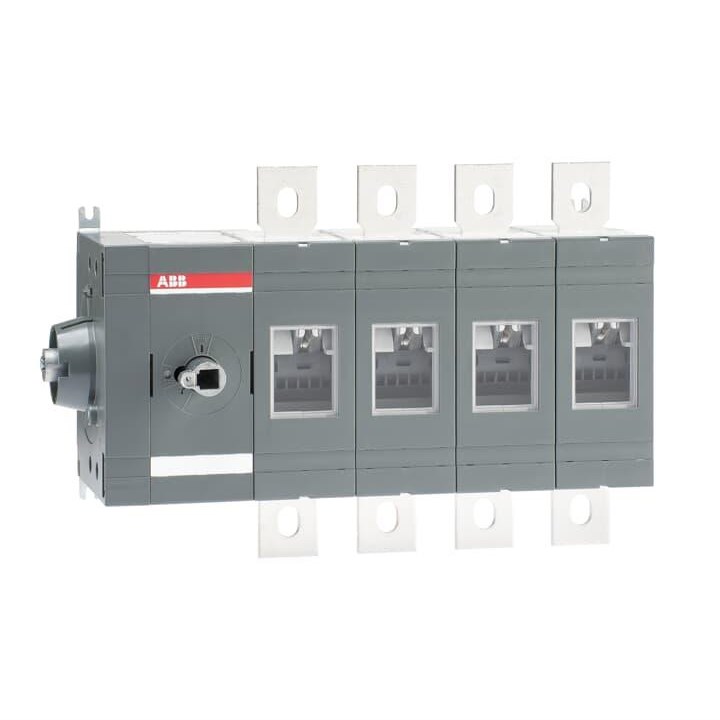

ABB OT800ES04 Disconnector Switch IP65 800A 4 1000VAC Base Mount

Product Code: OT800ES04

  • Base mount, 800 A load break switch
  • IP65 protection for harsh environments
  • Complies with IEC 60947-3, RoHS, CE
  • Suitable for distribution board install
  • 4-pole design with side operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
450kW
Rated Operational Current AC21-A (Ie)
800A
Rated Operational Current AC22-A (Ie)
800A
Rated Operational Current AC23-A (Ie)
800A
Rated Short Time Withstand Current (Icw)
20000A
Power Loss
40W
Special Functions
No
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
130mm
Height
250mm
Weight
8.5kg
Width
381mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
