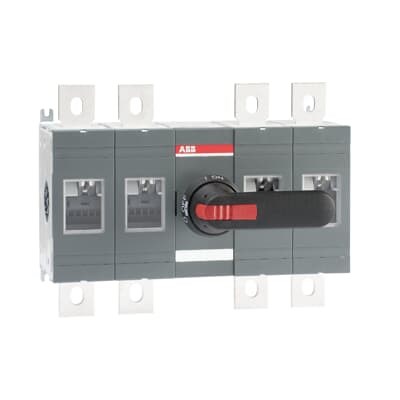

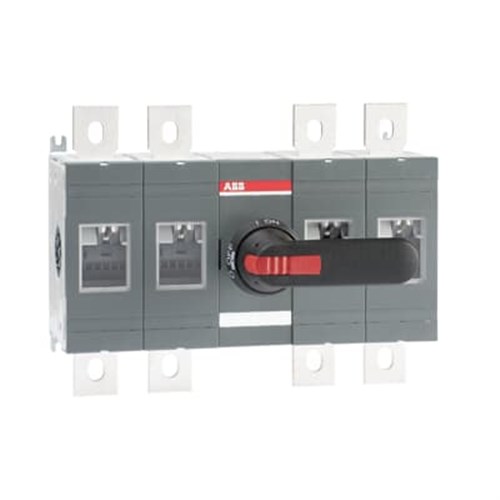

ABB OT800E22P Base Mount Switch 315A 4-P Black

Product Code: OT800E22P

  • Enclosed design with 4 poles
  • Rated for up to 315 A current
  • Handles voltage up to 1000 V
  • Short circuit capacity of 65 kA
  • Compact size: 331x250x140 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
450kW
Rated Operational Current AC21-A (Ie)
800A
Rated Operational Current AC22-A (Ie)
800A
Rated Operational Current AC23-A (Ie)
800A
Rated Short Time Withstand Current (Icw)
for 1 s 20kA
Power Loss
at Rated Operating Conditions per Pole 40W
Special Functions
No
Mechanical Life
10000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
140mm
Height
250mm
Weight
8kg
Width
331mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
