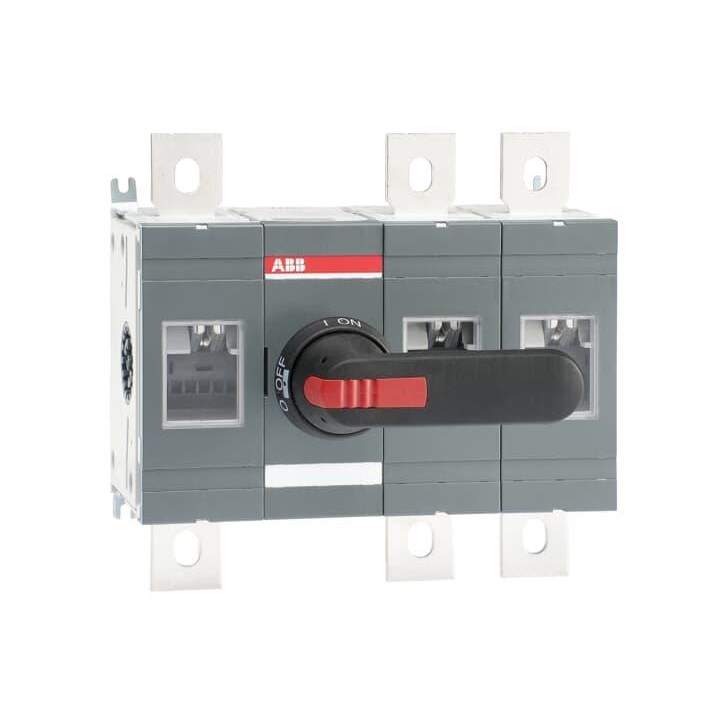

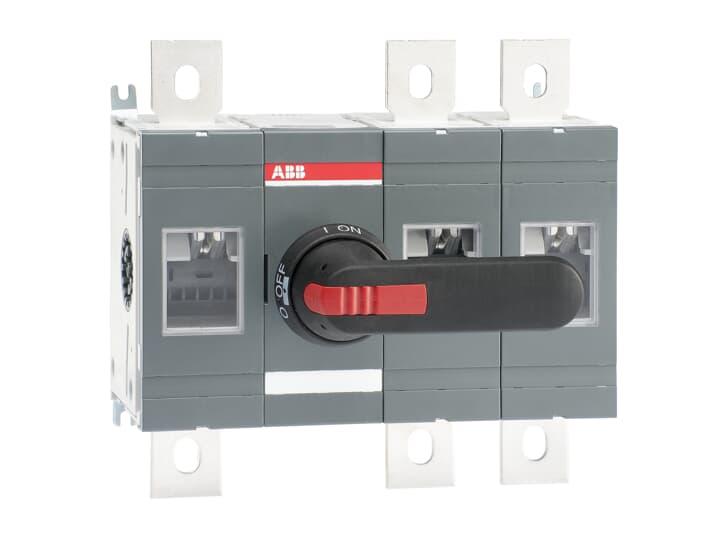

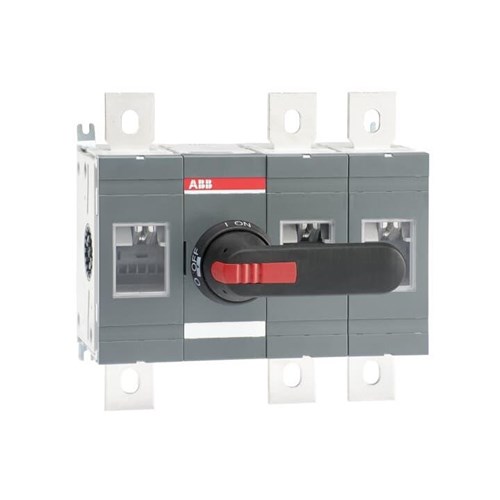

ABB OT800E12P Disconnector Switch IP65 800A 3 1000VAC Black Pistol Handle Base Mount

Product Code: OT800E12P

  • Rated for 800 A, suitable for high power needs
  • Compact size: 266x250x140 mm
  • IP65 protection against dust and water
  • Complies with IEC 60947-3 standards
  • Includes pistol handle and shaft
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
450kW
Rated Operational Current AC21-A (Ie)
800A
Rated Operational Current AC22-A (Ie)
800A
Rated Operational Current AC23-A (Ie)
800A
Rated Short Time Withstand Current (Icw)
20000A
Power Loss
40W
Special Functions
No
Mechanical Life
10000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
140mm
Height
250mm
Weight
5.5kg
Width
266mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, BV, CE, DNV GL
