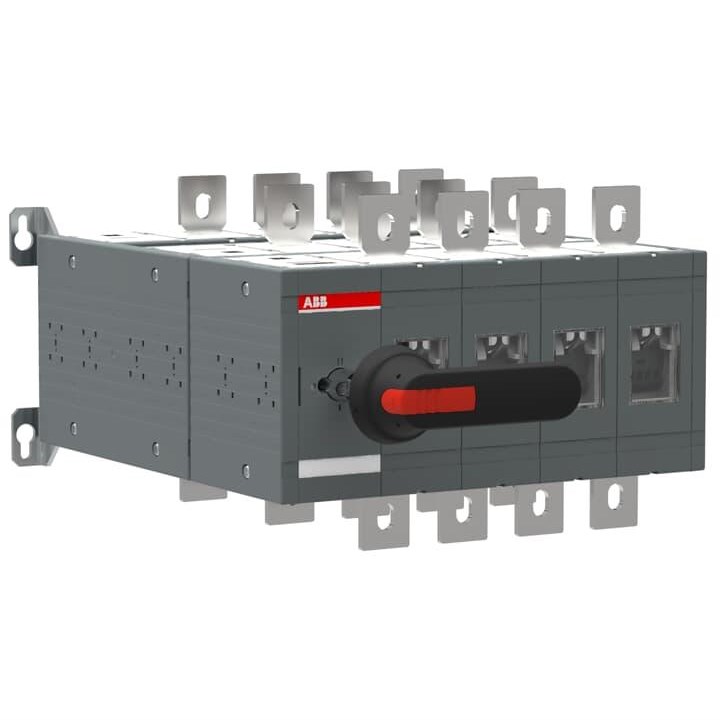

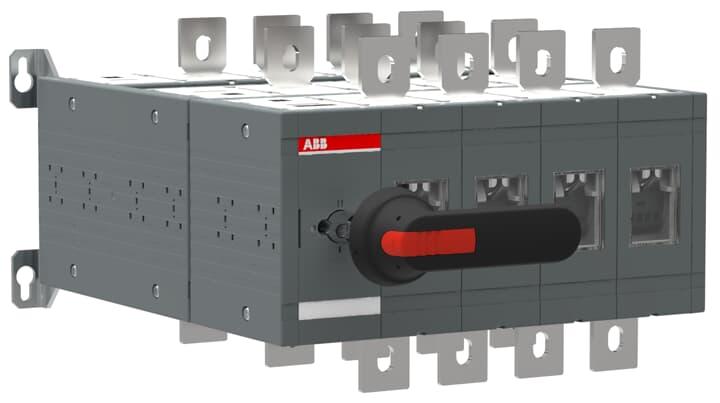

ABB OT800E04YP Bypass Switch 4 1000V 800A 800A 800A 450 kW 560 kW 800 kW Screw Terminal

Product Code: OT800E04YP

  • Rated for 800 A current
  • Supports up to 1000 V voltage
  • Offers IP20 protection rating
  • Compact size: 380x250x432 mm
  • Screw clamp terminal type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
450kW
Rated Operational Current AC21-A (Ie)
800A
Rated Operational Current AC22-A (Ie)
800A
Rated Operational Current AC23-A (Ie)
800A
Power Loss
40W
Transition Type
Open
Mechanical Life
5000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
432mm
Height
250mm
Weight
33.56kg
Width
380mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
