Specifications

Product Type

Change - Over Switch Kit

Brand

ABB

Series

Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 750V
Rated Operating Voltage Main Circuit 750V	Rated Operation Power at AC-23, 400 V 22kW	Rated Operational Current AC21-A (Ie) 63A
Rated Operational Current AC22-A (Ie) 63A	Rated Operational Current AC23-A (Ie) 63A	Rated Short Time Withstand Current (Icw) for 1 s 1kA rms
Power Loss at Rated Operating Conditions per Pole 2.8W	Rated Current (In) 63A	Transition Type Open
No. of Poles 3P

Depth 85mm (Only the switch)	Height 92mm (Only the switch)	Weight 0.64kg (Only the switch)
Width 105mm (Only the switch)

Pollution Degree

Operating Temperature

-25°C to 40°C

IP Rating

Front IP20

Standards and Approvals

UL 98 / IEC 60947-3

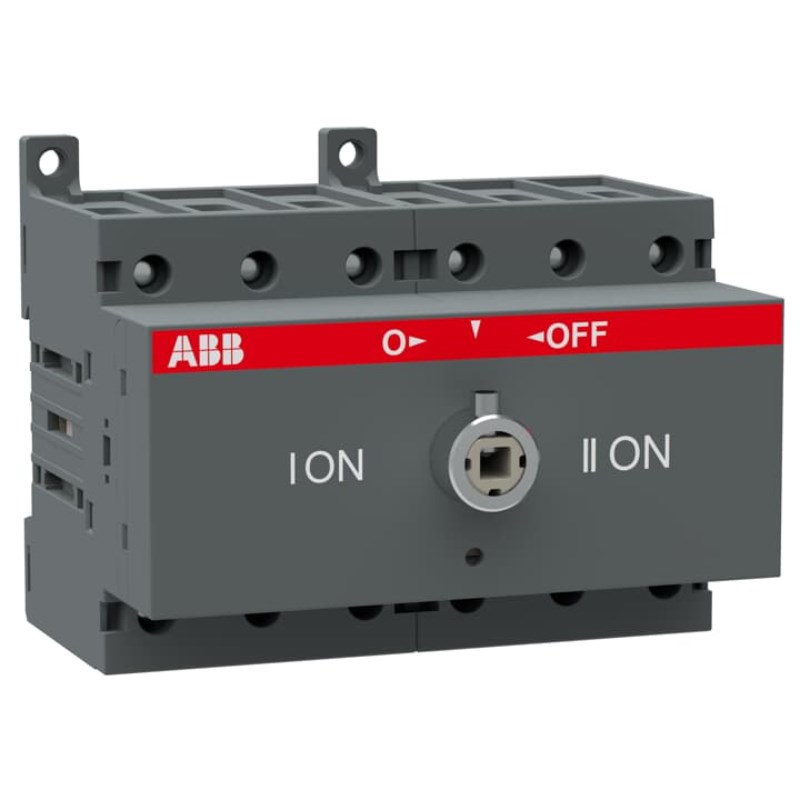

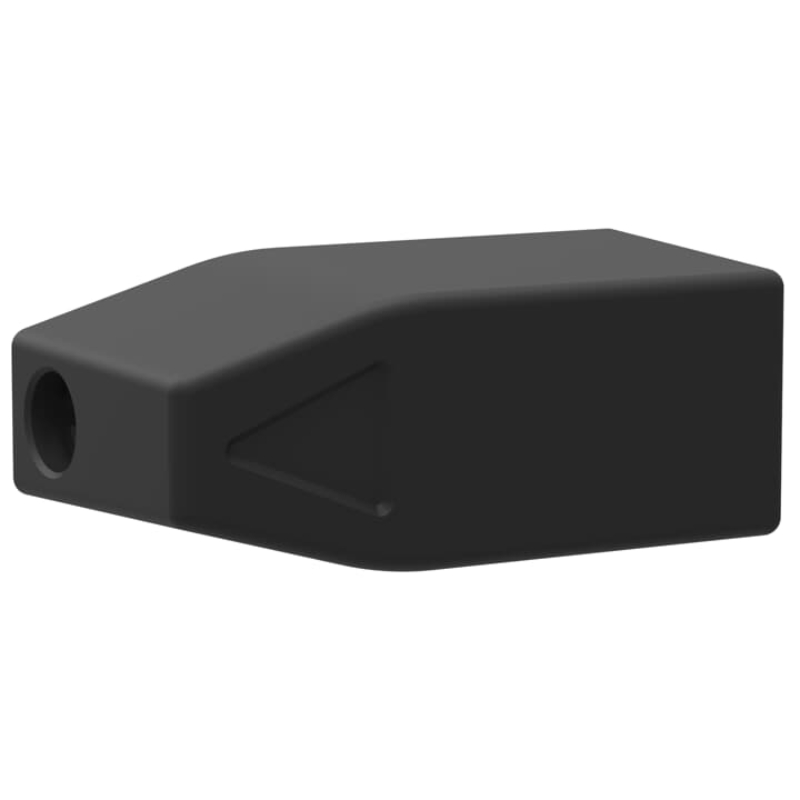

ABB CHANGEOVER SWITCH KIT 63A 3P/3P DIN PROFILE C/W NON PAD LOCK HANDLE UP TO 35MM2 CABLE
