LBS 63A 3P BASE MOUNT ABB KIT C/W R/Y DOOR HANDLE 22MM FIX IP65, UP TO 35MM2 CABLE

Product Code: OT63B22R3-K

  • Base mount load break switch, 63 A rated current
  • Complies with IEC, UL, CSA standards
  • Compact size: 65x72x69 mm dimensions
  • IP20 protection with screw clamp terminals

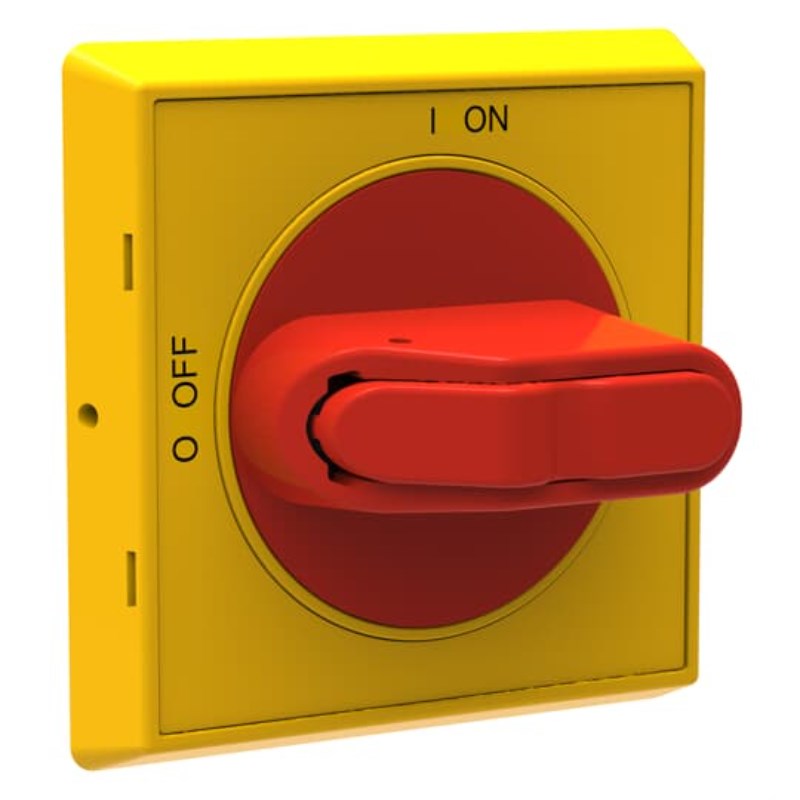

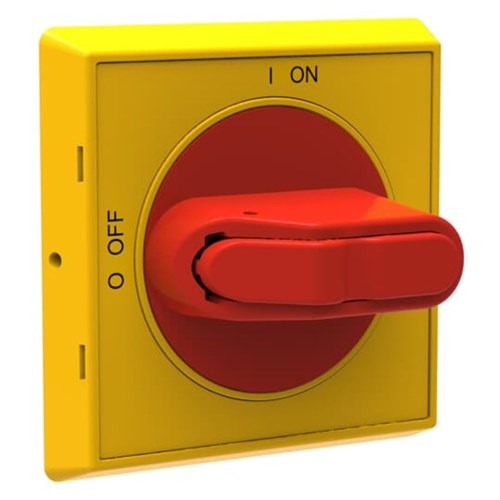

  • Selector handle in red/yellow for easy operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Break Switch Kit
Brand
ABB
Series
OT
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operational Current AC21-A (Ie)
63A
Rated Operational Current AC22-A (Ie)
63A
Rated Operational Current AC23-A (Ie)
63A
Rated Short Time Withstand Current (Icw)
for 1 s 1.5kA
Power Loss
at Rated Operating Conditions per Pole 2.8W
Rated Current (In)
63A
Special Functions
No
Mechanical Life
20000
No. of Poles
3P

Dimensions & Physical Data

Depth
72.5mm
Height
91.5mm
Weight
0.25kg
Width
52.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Accessories & Additional Information

Included Components

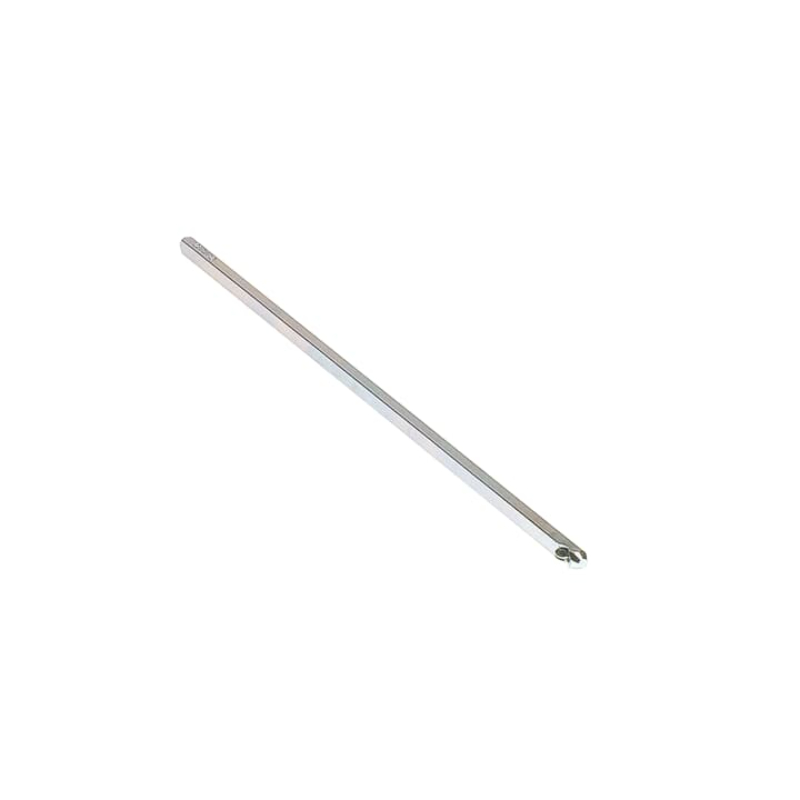

Handle and Shaft
