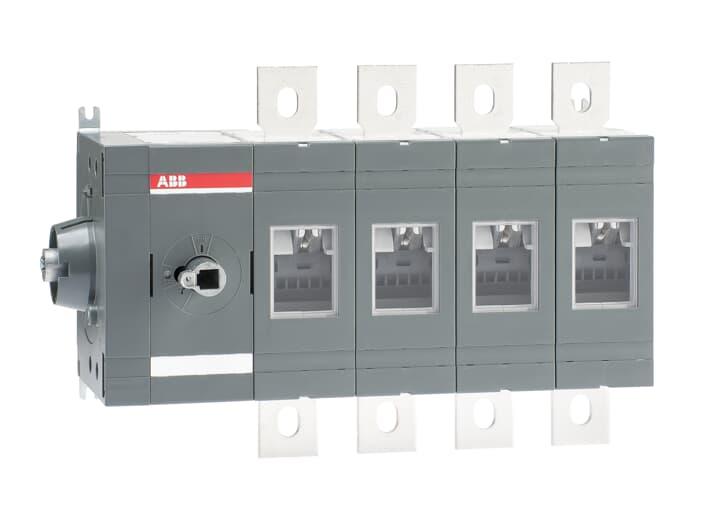

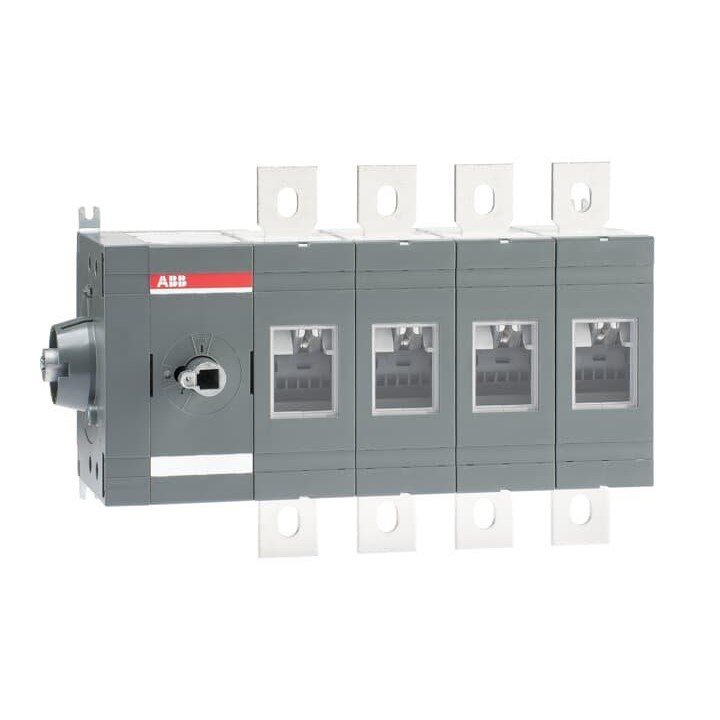

ABB OT630ES04 Disconnector Switch IP65 630A 4 1000VAC Base Mount

Product Code: OT630ES04

  • Base mount load break switch, 630 A capacity
  • Complies with IEC 60947-3, RoHS, CE standards
  • IP65 protection for harsh environments
  • Suitable for distribution board installation
  • Compact size: 381x250x130 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
355kW
Rated Operational Current AC21-A (Ie)
630A
Rated Operational Current AC22-A (Ie)
630A
Rated Operational Current AC23-A (Ie)
630A
Rated Short Time Withstand Current (Icw)
20000A
Power Loss
25W
Special Functions
No
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
130mm
Height
250mm
Weight
8.5kg
Width
381mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
