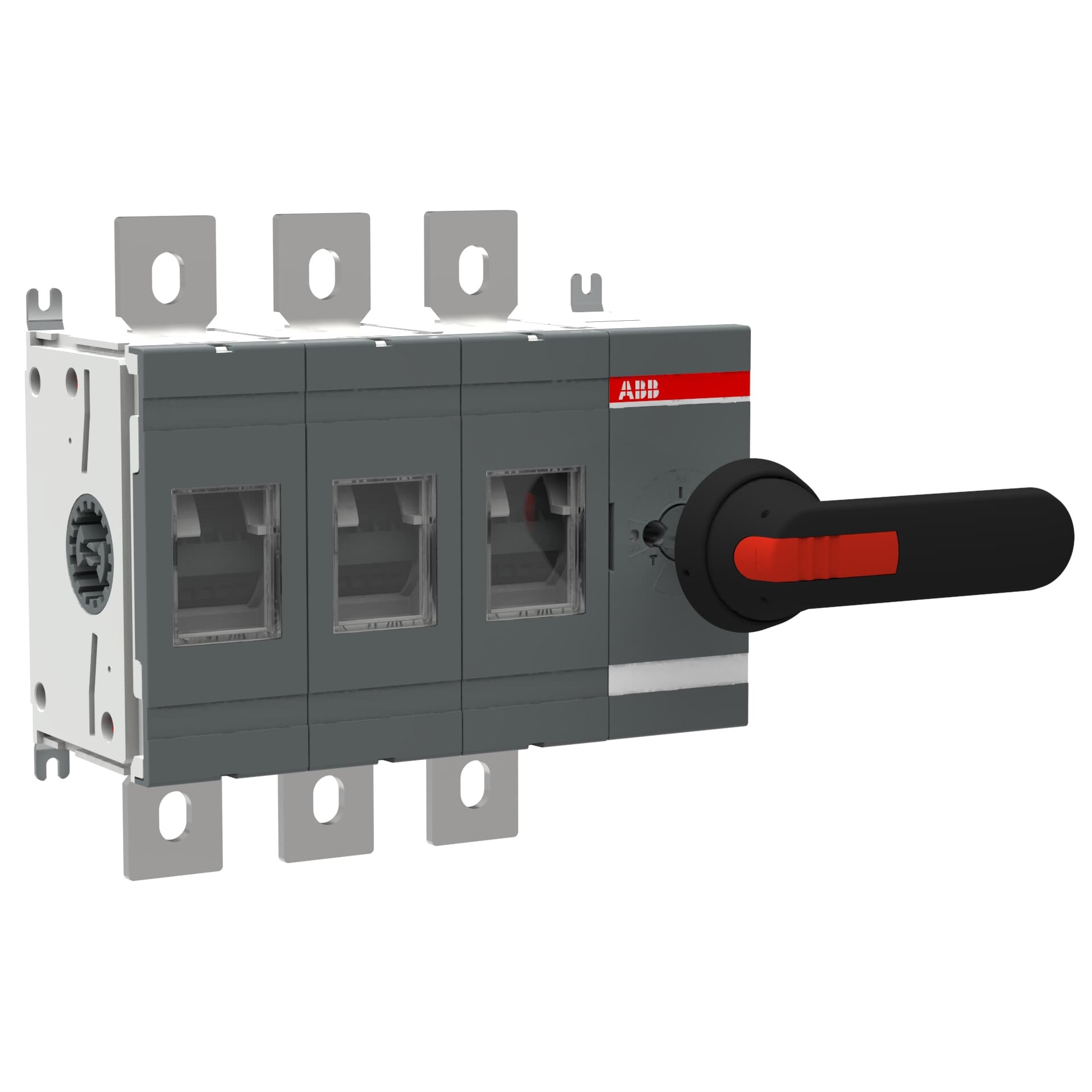

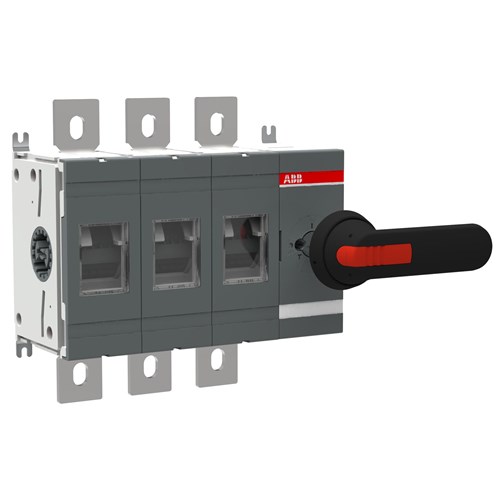

ABB OT630E30P Load Break Switch IP00 630A 3-P 1000V Black

Product Code: OT630E30P

  • Rated current of 630 A for high power applications
  • Compact design: 266mm wide, 250mm tall, 140mm deep
  • Front operation mode for easy access
  • Handles short circuits up to 80 kA effectively
  • Supports rated voltage of up to 1000 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
355kW
Rated Operational Current AC21-A (Ie)
630A
Rated Operational Current AC22-A (Ie)
630A
Rated Operational Current AC23-A (Ie)
630A
Rated Short Time Withstand Current (Icw)
20000A
Power Loss
25W
Special Functions
No
Mechanical Life
10000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
140mm
Height
250mm
Weight
6.4kg
Width
266mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL

Documents

IPD Product Catalogue V17
