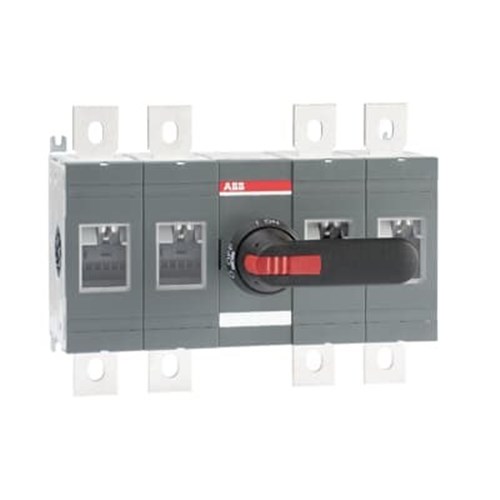

ABB OT630E22P Base Mount Switch IP00 4-P 690V Black Base Mount

Product Code: OT630E22P

  • Compact design: 331x250x140 mm
  • High impulse withstand: 12 kV
  • Rated voltage up to 690 V
  • Front operation for easy access
  • Base mounting for stability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
355kW
Rated Operational Current AC21-A (Ie)
630A
Rated Operational Current AC22-A (Ie)
630A
Rated Operational Current AC23-A (Ie)
630A
Rated Short Time Withstand Current (Icw)
for 1 s 20kA
Power Loss
at Rated Operating Conditions per Pole 25W
Special Functions
No
Mechanical Life
10000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
140mm
Height
250mm
Weight
8kg
Width
331mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
