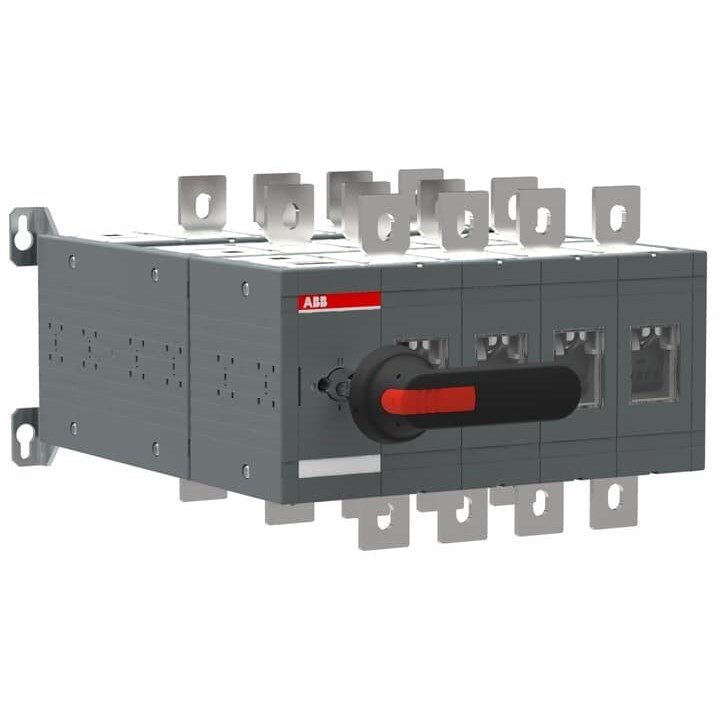

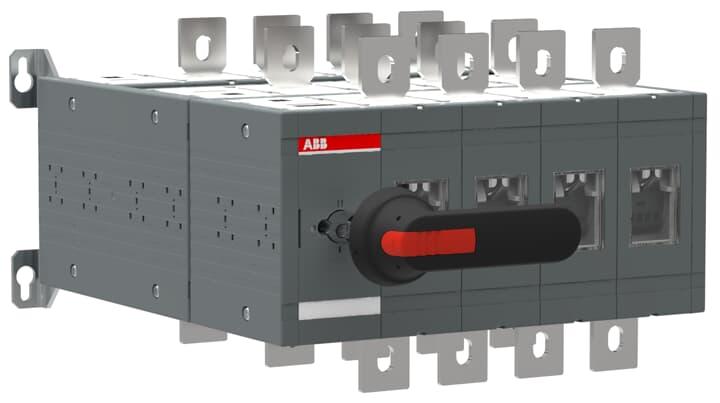

ABB OT630E04YP Bypass Switch 4 1000V 630A 630 kW Screw Terminal

Product Code: OT630E04YP

  • Rated for 630 A and 1000 V
  • Compact size: 315 mm x 250 mm
  • IP20 protection rating
  • Screw clamp terminals for secure connections
  • Fourth pole with switched-simultaneous function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bypass Switch
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
355kW
Rated Operational Current AC21-A (Ie)
630A
Rated Operational Current AC22-A (Ie)
630A
Rated Operational Current AC23-A (Ie)
630A
Power Loss
25W
Transition Type
Open
Mechanical Life
5000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
488mm
Height
250mm
Weight
33.56kg
Width
315mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
