Specifications

Product Type Switch - Disconnector	Brand ABB	Series OT630E03
Application Switch-disconnector

Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1000V
Rated Operating Voltage 1000V	Rated Operation Power at AC-23, 400 V 355kW	Rated Operational Current AC21-A (Ie) 630A
Rated Operational Current AC22-A (Ie) 630A	Rated Operational Current AC23-A (Ie) 630A	Rated Short Time Withstand Current (Icw) 20000A
Power Loss 25W	Special Functions No	Mechanical Life 10000 cycles
No. of Poles 3P

Depth 140mm	Height 250mm	Weight 6.1kg
Width 266mm

Pollution Degree

IP Rating

IP00

Standards and Approvals

IEC 60947-3, CE, DNV GL

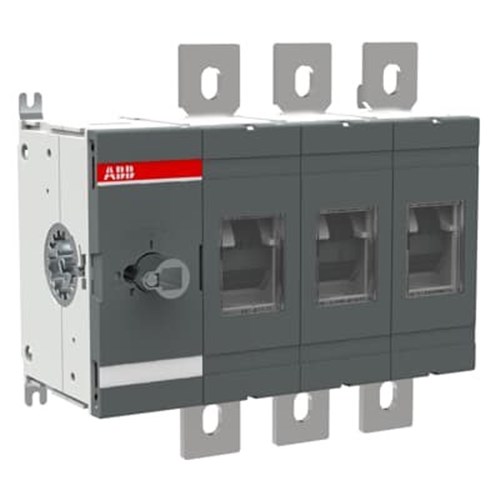

ABB OT630E03 SWITCH-DISCONNECTOR OT630E03
