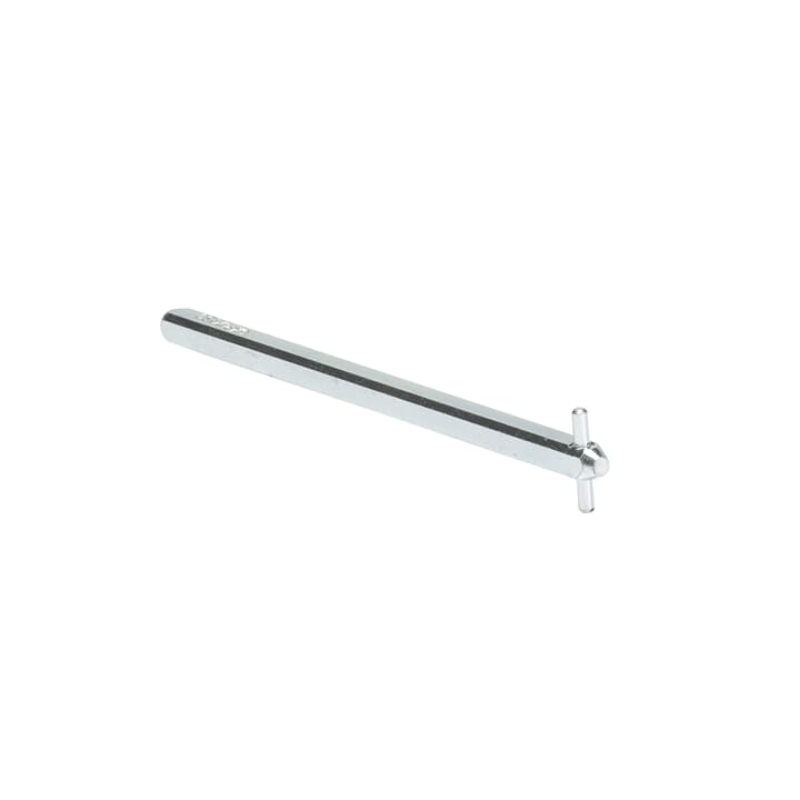

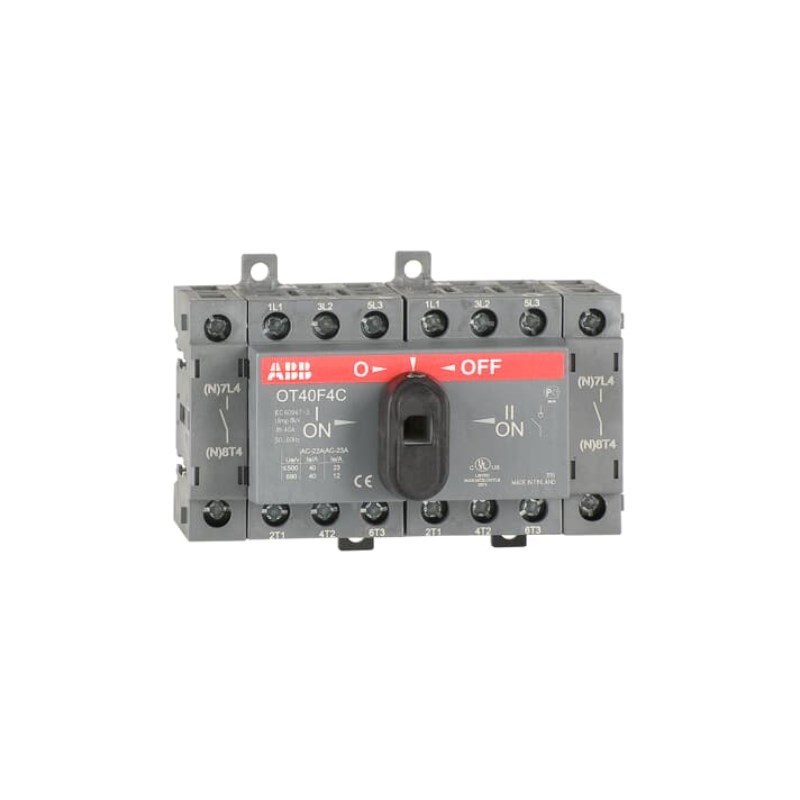

ABB CHANGE-OVER SWITCH KIT 40A 4P/4P BASE MOUNT C/W SHAFT, HANDLE IP65 UP TO 10MM2 CABLE

Product Code: OT40F4CP-K

  • 40A rated current for robust performance
  • Supports up to 750 VAC/VDC voltage
  • IP20/IP65 protection for versatile environments

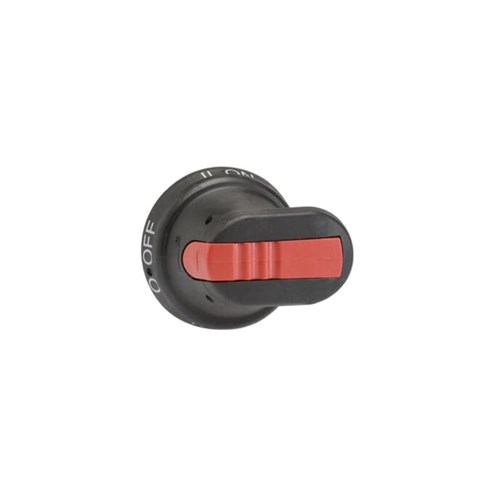

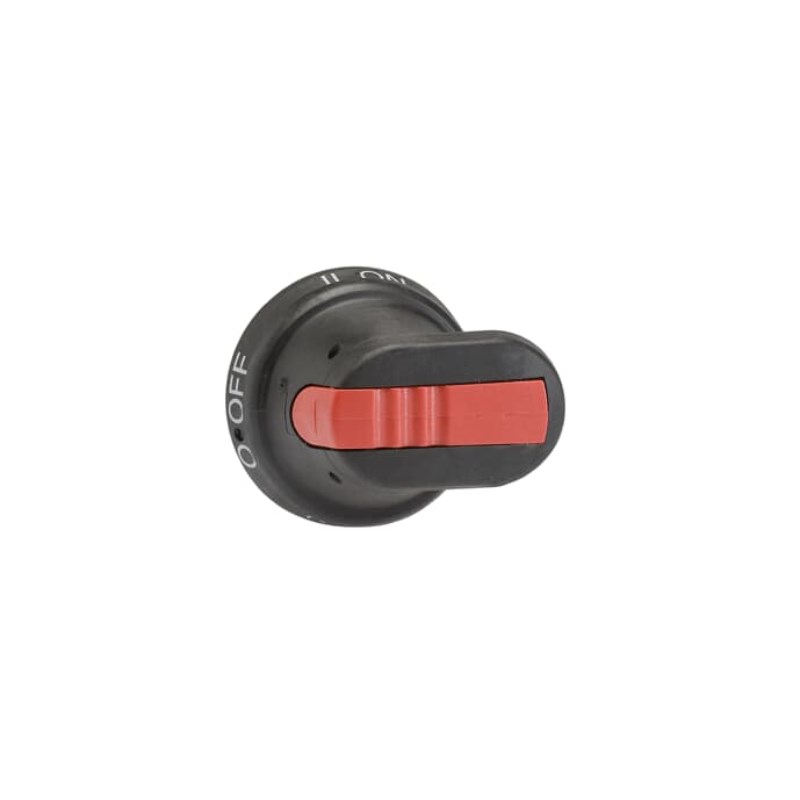

  • Base mounting with pistol handle design
  • 4 poles with switched-simultaneous function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Changeover Switch Kit
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operation Power at AC-23, 400 V
11kW
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
23A
Rated Short Time Withstand Current (Icw)
for 1 s 0.5kA rms
Power Loss
at Rated Operating Conditions per Pole 1.6W
Rated Current (In)
40A
Transition Type
Open
No. of Poles
4P

Dimensions & Physical Data

Depth
68mm (Only the switch)
Height
68mm (Only the switch)
Weight
0.27kg (Only the switch)
Width
96mm (Only the switch)

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98 / IEC 60947-3
