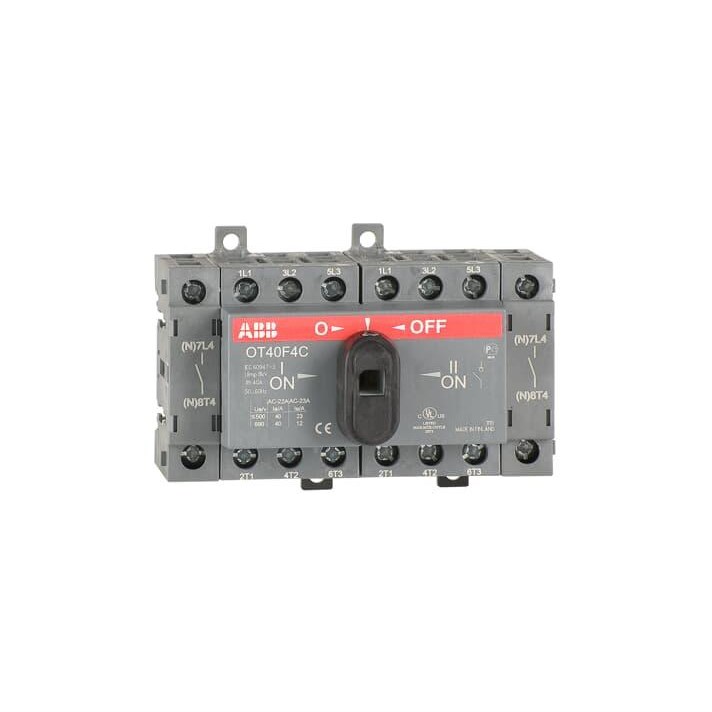

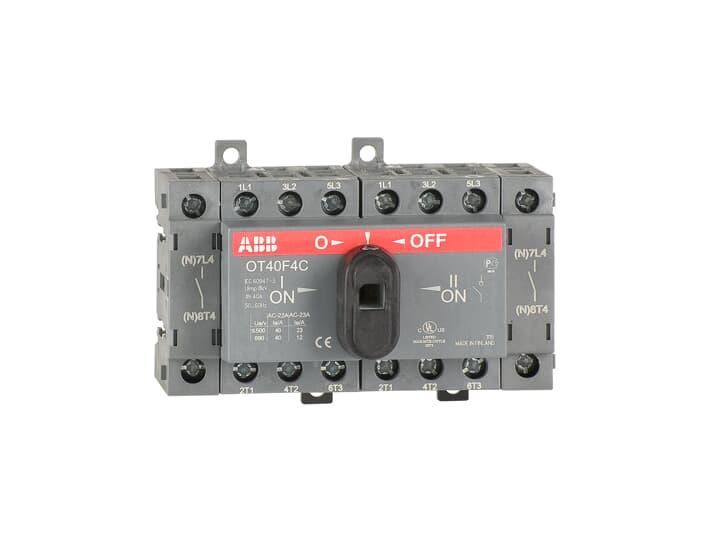

ABB OT40F4C Changeover Switch 40A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT40F4C

  • Rated current of 40A, suitable for dist. boards
  • Compact size: 96x68x68mm, easy front mount
  • Complies with UL 98, RoHS, REACH standards
  • IP20 protection, interlockable for safety
  • Screw clamp terminals support 0.75-10 sq-mm cables
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT40F4C
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
11kW
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
23A
Rated Short Time Withstand Current (Icw)
500A
Power Loss
1.6W
Transition Type
Open
No. of Poles
4P

Dimensions & Physical Data

Depth
68mm
Height
68mm
Weight
0.27kg
Width
96mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98, IEC 60947-3, CE, DNV
