Specifications

Product Type

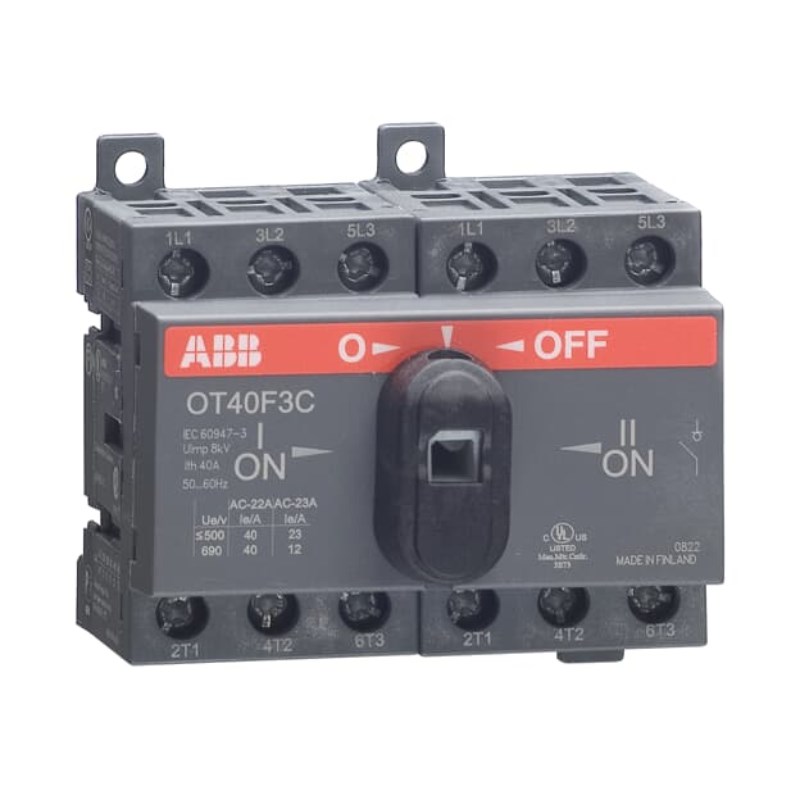

Change - Over Switch Kit

Brand

ABB

Series

Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 750V
Rated Operating Voltage Main Circuit 750V	Rated Operation Power at AC-23, 400 V 11kW	Rated Operational Current AC21-A (Ie) 40A
Rated Operational Current AC22-A (Ie) 40A	Rated Operational Current AC23-A (Ie) 23A	Rated Short Time Withstand Current (Icw) for 1 s 0.5kA rms
Power Loss at Rated Operating Conditions per Pole 1.6W	Rated Current (In) 40A	Transition Type Open
No. of Poles 3P

Depth 68mm (Only the switch)	Height 68mm (Only the switch)	Weight 0.25kg (Only the switch)
Width 70mm (Only the switch)

Pollution Degree

Operating Temperature

-25°C to 40°C

IP Rating

Front IP20

Standards and Approvals

UL 98 / IEC 60947-3

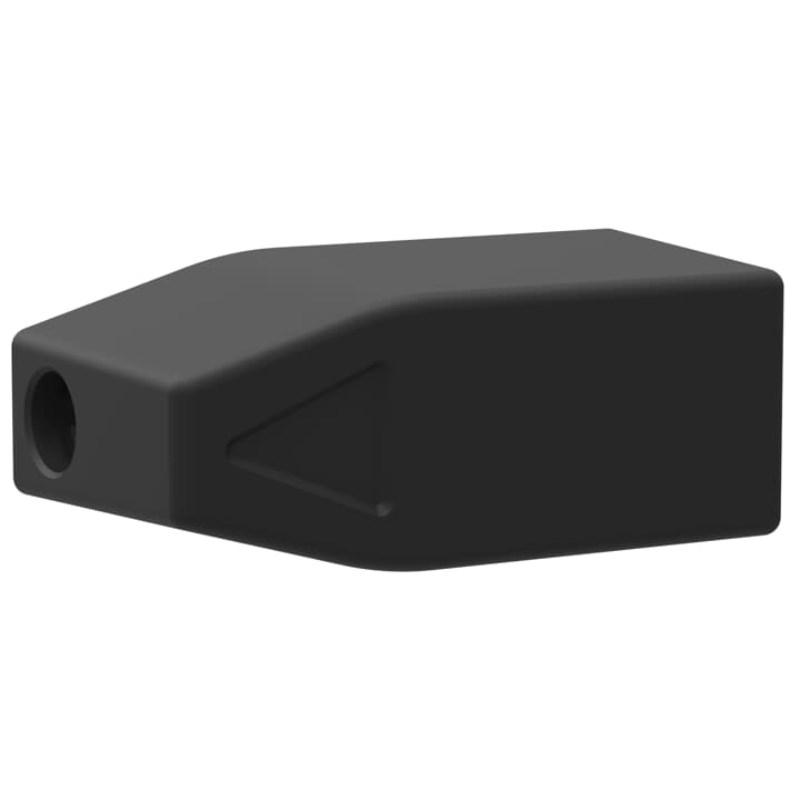

ABB CHANGEOVER SWITCH KIT 40A 3P/3P DIN PROFILE C/W NON PAD LOCK HANDLE UP TO 10MM2 CABLE
