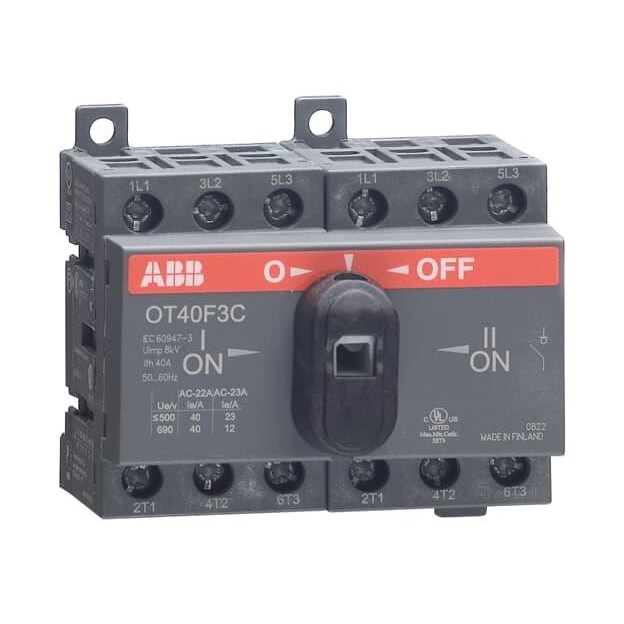

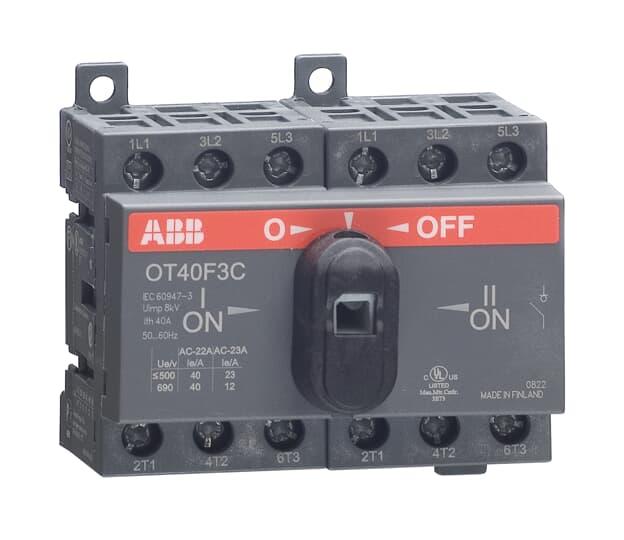

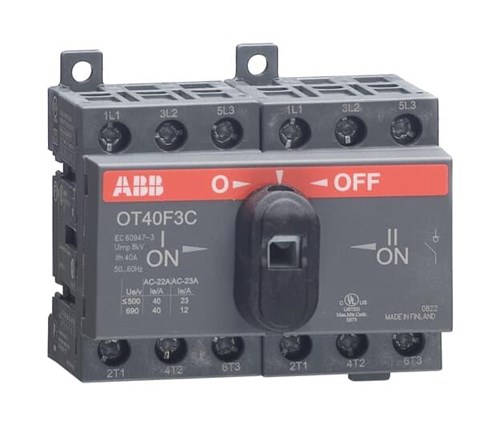

ABB OT40F3C Changeover Switch 40A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT40F3C

  • Rated for 40 A and 415 VAC
  • Compact size: 70x68x68 mm
  • Complies with UL, RoHS, REACH, CE standards
  • Screw clamp terminals for secure connection
  • Interlockable with knob handle included
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT40F3C
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
11kW
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
23A
Rated Short Time Withstand Current (Icw)
500A
Power Loss
1.6W
Transition Type
Open
No. of Poles
3P

Dimensions & Physical Data

Depth
68mm
Height
68mm
Weight
0.25kg
Width
70mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98, IEC 60947-3, CE, DNV
