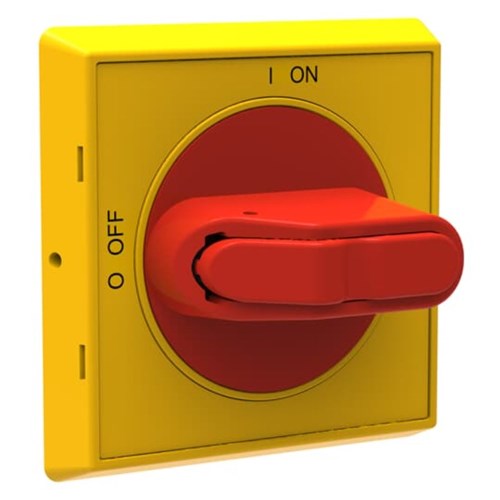

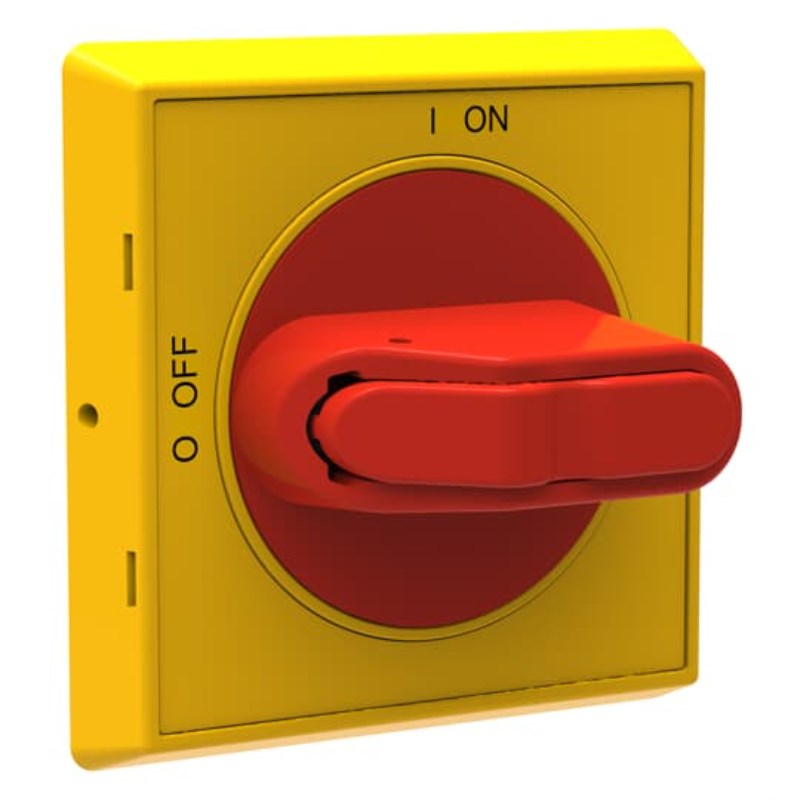

LBS 40A 3P DOOR MOUNT ABB KIT C/W R/Y DOOR HANDLE 4 HOLE FIX IP65, UP TO 10MM2 CABLE

Product Code: OT40D4R3-K

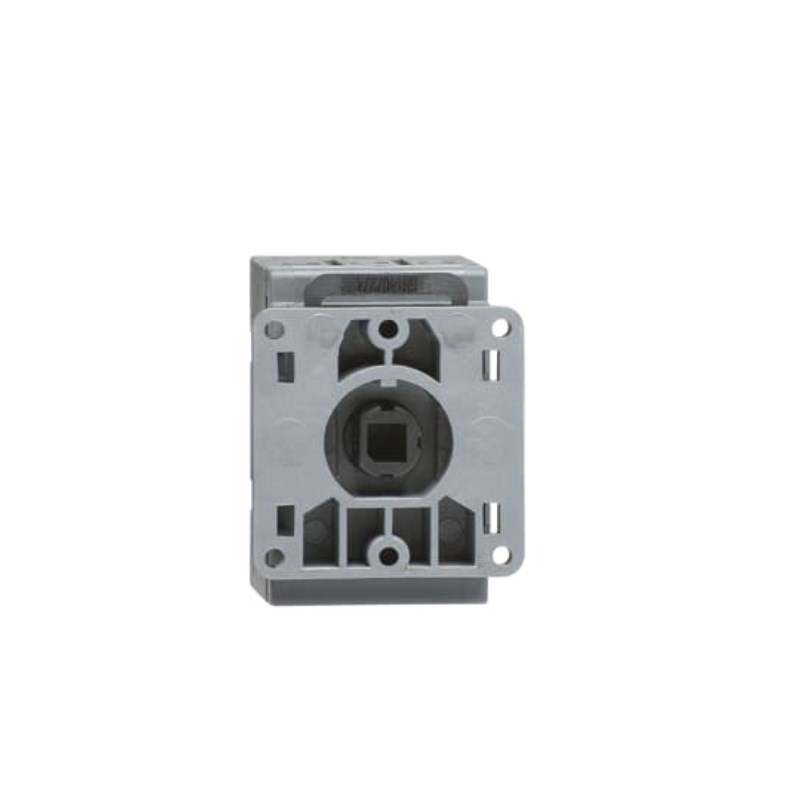

  • Door mount switch with selector handle
  • Rated current of 40 A for reliable operation
  • Complies with IEC, UL, and CSA standards
  • IP20 protection against solid objects
  • Supports cables from 0.75 to 10 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Break Switch Kit
Brand
ABB
Series
OT
Application
Commercial buildings, manufacturing, HVAC

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
23A
Rated Short Time Withstand Current (Icw)
for 1 s 0.5kA
Power Loss
at Rated Operating Conditions per Pole 1.6W
Rated Current (In)
40A
Special Functions
No
Mechanical Life
20000
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
68mm
Weight
0.09kg
Width
35mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Accessories & Additional Information

Included Components
Handle and Shaft
