Specifications

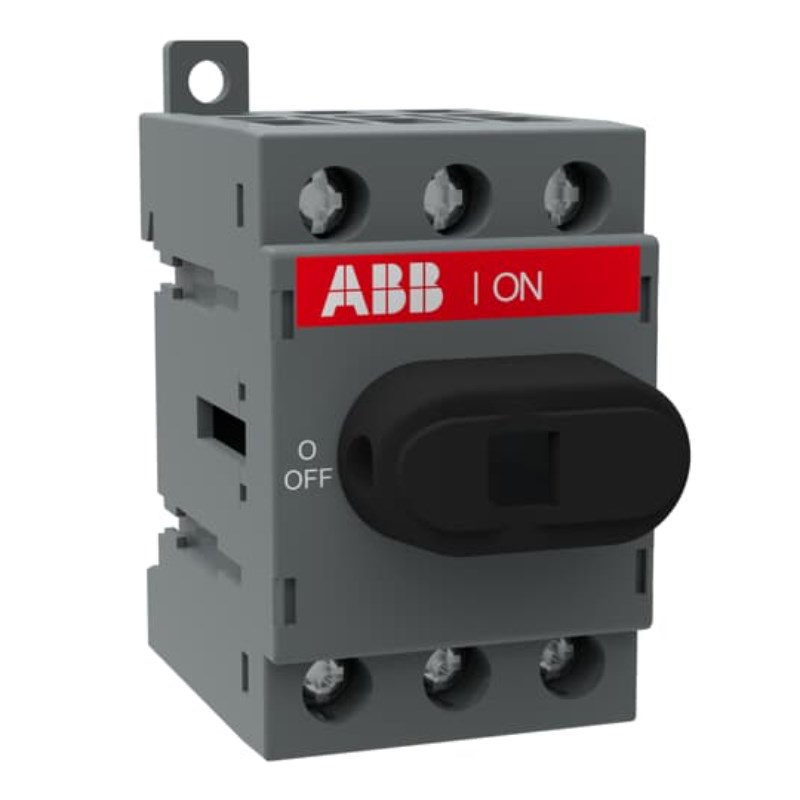

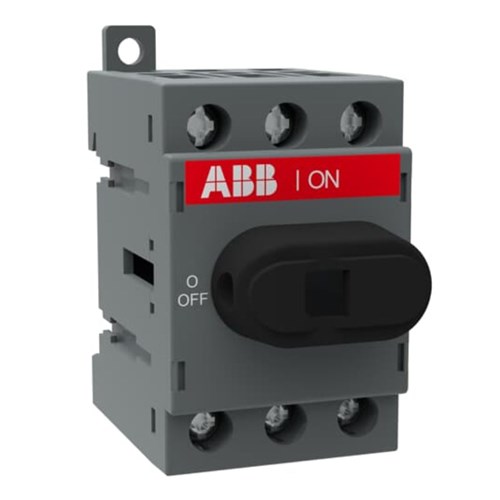

Product Type Load Break Switch Kit	Brand ABB	Series OT
Application Manufacturing, commercial buildings, infrastructure

Position of Line Terminals Top In - Bottom Out Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 750V
Rated Operating Voltage Main Circuit 750V	Rated Operational Current AC21-A (Ie) 40A	Rated Operational Current AC22-A (Ie) 40A
Rated Operational Current AC23-A (Ie) 23A	Rated Short Time Withstand Current (Icw) for 1 s 0.5kA	Power Loss at Rated Operating Conditions per Pole 1.6W
Rated Current (In) 40A	Special Functions No	Mechanical Life 20000
No. of Poles 4P

Depth 56mm	Height 68mm	Weight 0.125kg
Width 48mm

Pollution Degree

IP Rating

Front IP20

Standards and Approvals

IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Included Components

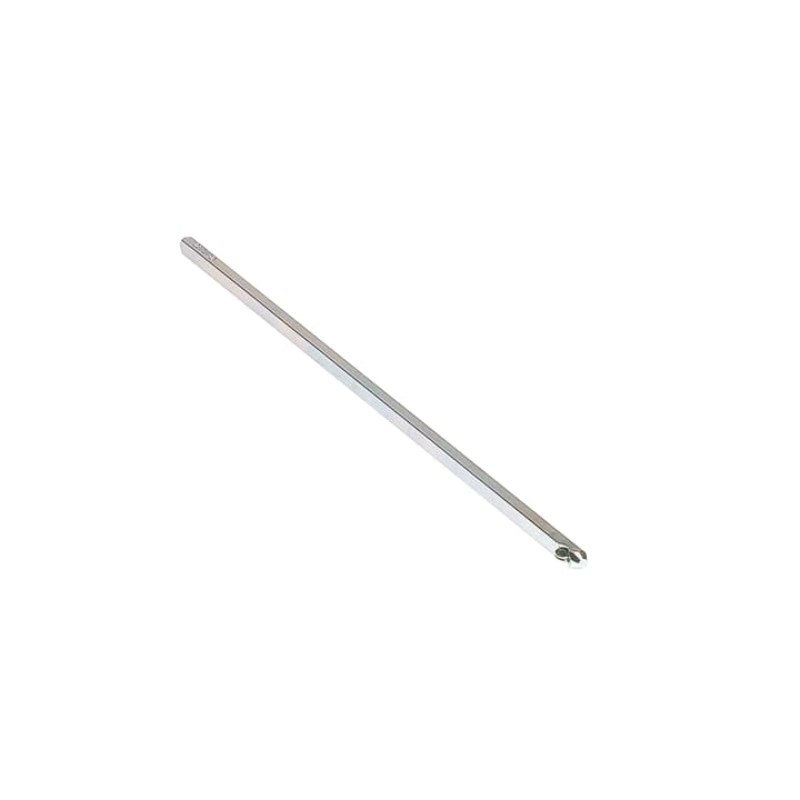

Handle and Shaft

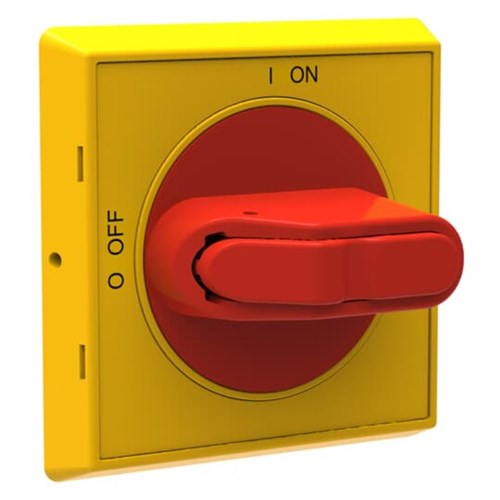

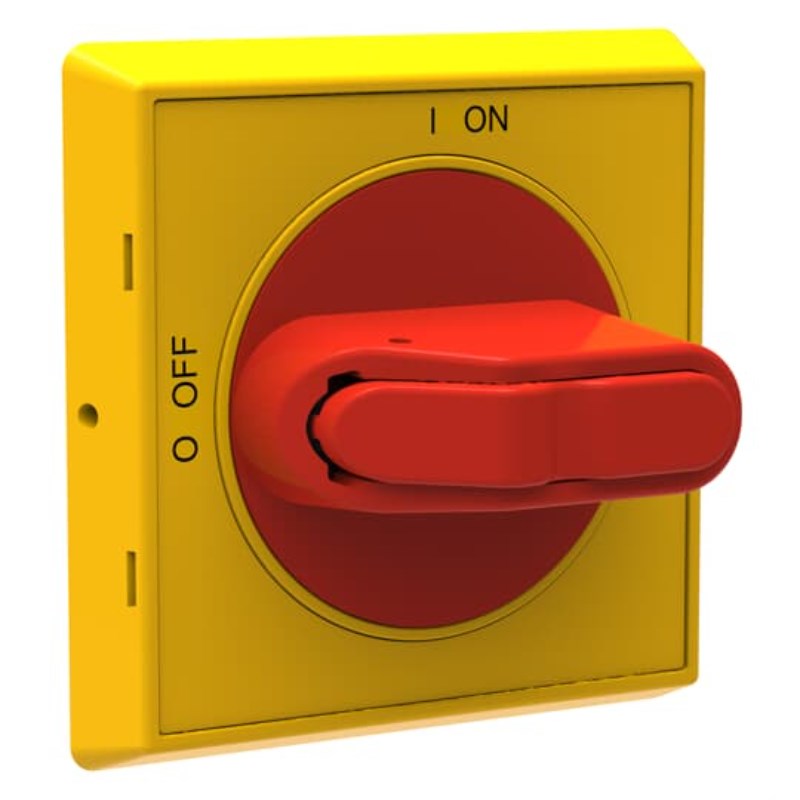

LBS 40A 4P BASE MOUNT ABB KIT C/W R/Y DOOR HANDLE 22MM FIX IP65, UP TO 10MM2 CABLE
