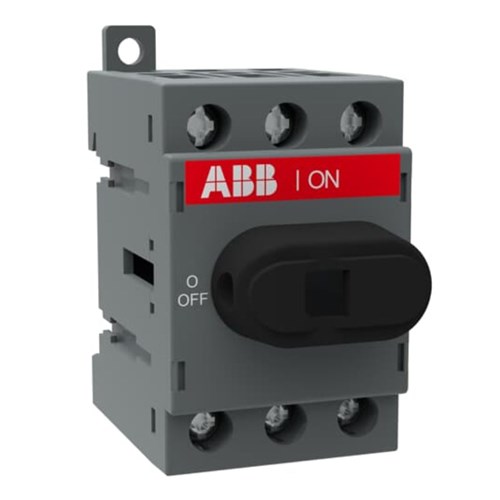

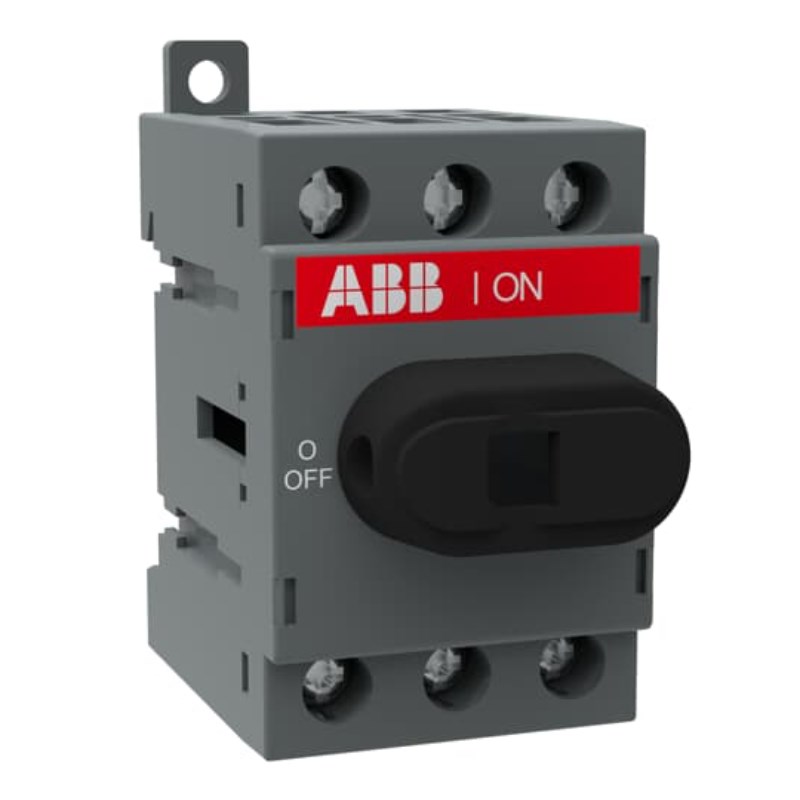

LBS 40A 3P BASE MOUNT ABB KIT C/W R/Y DOOR HANDLE 22MM FIX IP65, UP TO 10MM2 CABLE

Product Code: OT40B22R3-K

  • Base mount load break switch, 40 A rated current
  • Complies with IEC 60947-3, UL 508 standards
  • Compact size: 43x54x52 mm

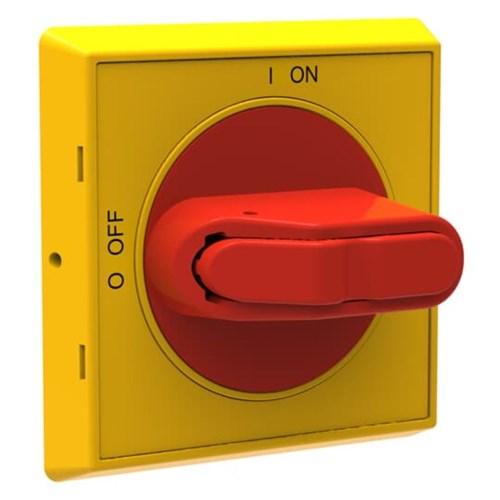

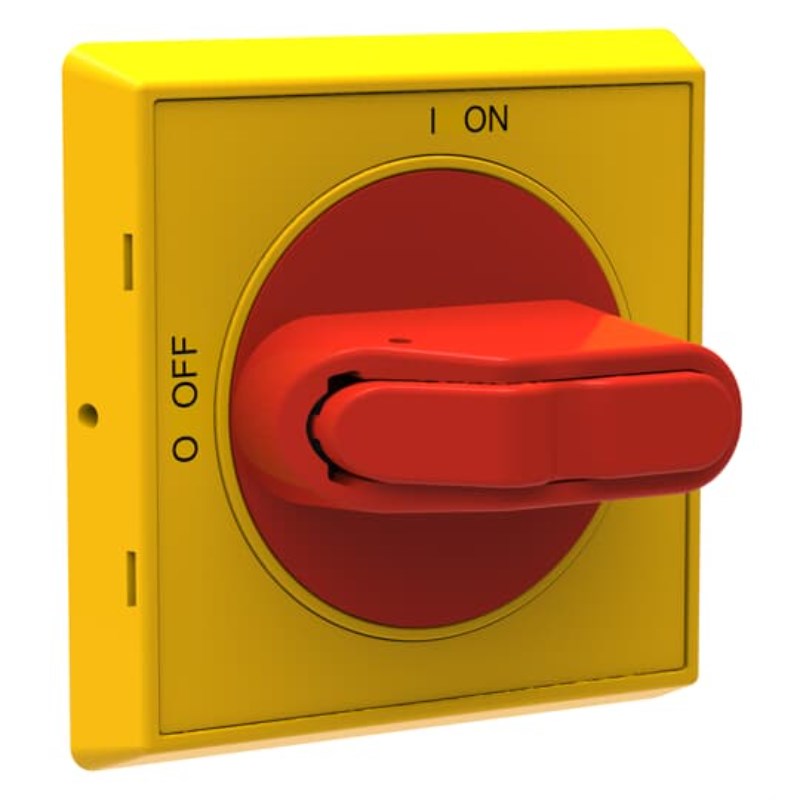

  • Selector handle included, red/yellow options
  • Screw clamp terminals for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Break Switch Kit
Brand
ABB
Series
OT
Application
Manufacturing, commercial buildings, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
23A
Rated Short Time Withstand Current (Icw)
for 1 s 0.5kA
Power Loss
at Rated Operating Conditions per Pole 1.6W
Rated Current (In)
40A
Special Functions
No
Mechanical Life
20000
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
68mm
Weight
0.09kg
Width
35mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Accessories & Additional Information

Included Components

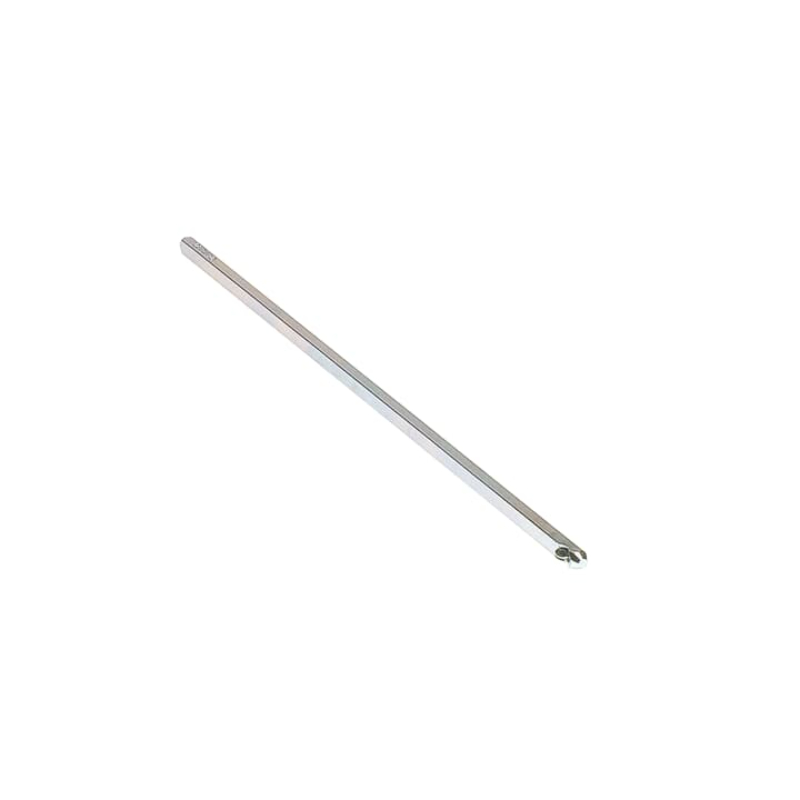

Handle and Shaft
