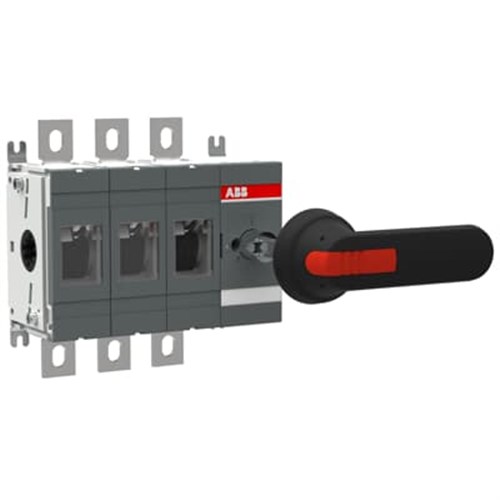

ABB OT400E30P Switch-Disconnector 400A 3-P 690V Black

Product Code: OT400E30P

  • Enclosed design for secure installation
  • Handles up to 400 A current
  • Compact size: 191x185x107 mm
  • High voltage tolerance: 690 V, 12 kV impulse
  • Supports 230 kW power load
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
230kW
Rated Operational Current AC21-A (Ie)
400A
Rated Operational Current AC22-A (Ie)
400A
Rated Operational Current AC23-A (Ie)
400A
Rated Short Time Withstand Current (Icw)
15000A
Power Loss
10W
Special Functions
No
Mechanical Life
16000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
107mm
Height
185mm
Weight
3.2kg
Width
191mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
