Products

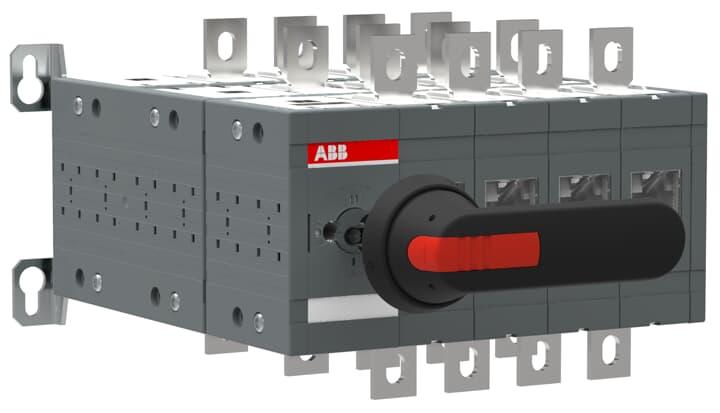

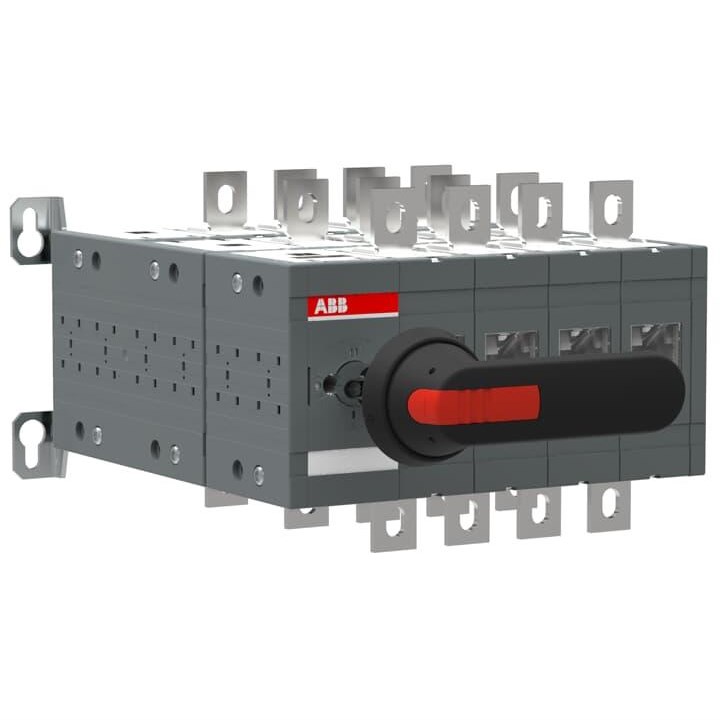

ABB OT400E04YP Bypass Switch 4 1000V 400A 400A 400A 220 kW 280 kW 400 kW Screw Terminal

Product Code: OT400E04YP

  • Rated current of 400 A for robust performance
  • Supports voltages up to 1000 V
  • Compact size: 280mm width, 185mm height
  • IP20 protection for safe indoor use
  • Screw clamp terminals ensure secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bypass Switch
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
220kW
Rated Operational Current AC21-A (Ie)
400A
Rated Operational Current AC22-A (Ie)
400A
Rated Operational Current AC23-A (Ie)
400A
Power Loss
10W
Transition Type
Open
Mechanical Life
8000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
306mm
Height
185mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
