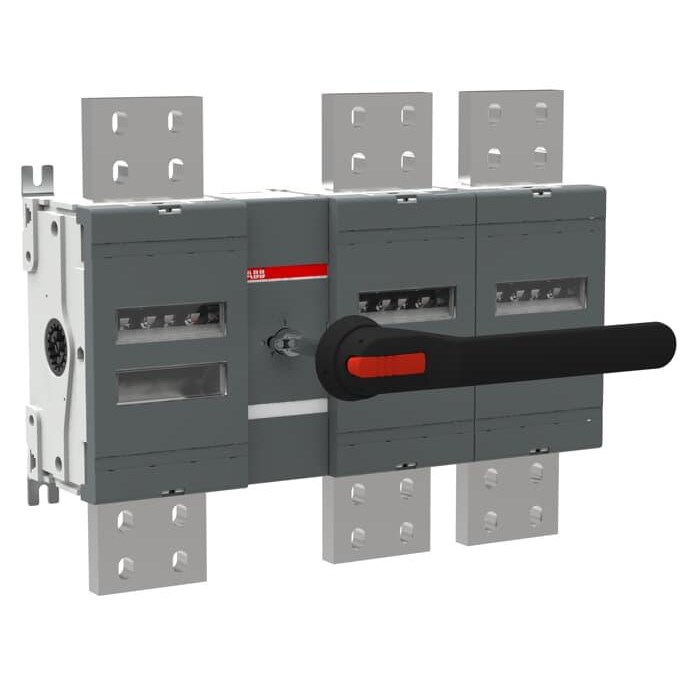

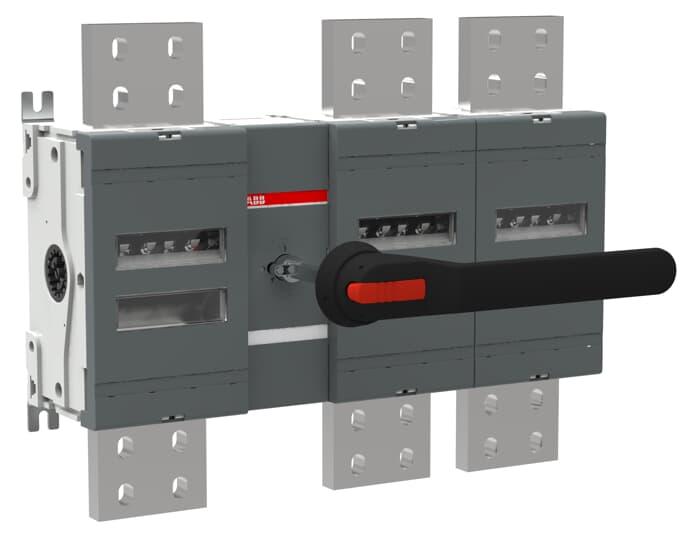

ABB OT4000E12P Disconnector Switch IP65 3800A 3 1000VAC Black Base Mount

Product Code: OT4000E12P

  • 3800 A operating mechanism for high current needs
  • Compact size: 514x410x146 mm
  • IP65 protection for harsh environments
  • Interlockable for enhanced safety
  • Suitable for distribution board installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Short Time Withstand Current (Icw)
80000A
Power Loss
130W
Special Functions
No
Mechanical Life
5000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
146mm
Height
410mm
Weight
37kg
Width
514mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE, DNV GL
