Specifications

Product Type Disconnector Switch	Brand ABB	Series OT4000
Application Power distribution panels, Motor control centers, Industrial machines, Backup / changeover systems, Commercial buildings

Max. Rated Operation AC Voltage (Ue) 1000V AC	Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 10kV
Rated Insulation Voltage (Ui) 1000 V (acc. to IEC/EN 60664-1 )	Rated Operating Voltage 1000V	Rated Short Time Withstand Current (Icw) 80kA (690V, 1 s )
Rated Uninterrupted Current (Iu) 4000A	Power Loss 130W/Pole	Rated Current (In) 4000A
Rated Frequency 50Hz to 60Hz	Transition Type Open	Mechanical Life 5000
No. of Poles 3P

Housing Material

Insulating plastic

Padlockable

Yes

Depth 146mm	Height 410mm	Weight 37kg
Width 514mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -40 °C to +60…70 °C	IP Rating IP65 (enclosed)

Standards and Approvals

IEC 60947-3

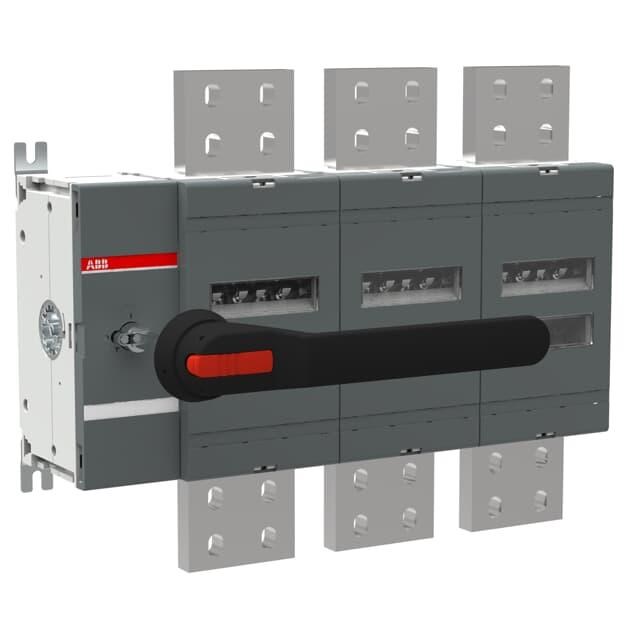

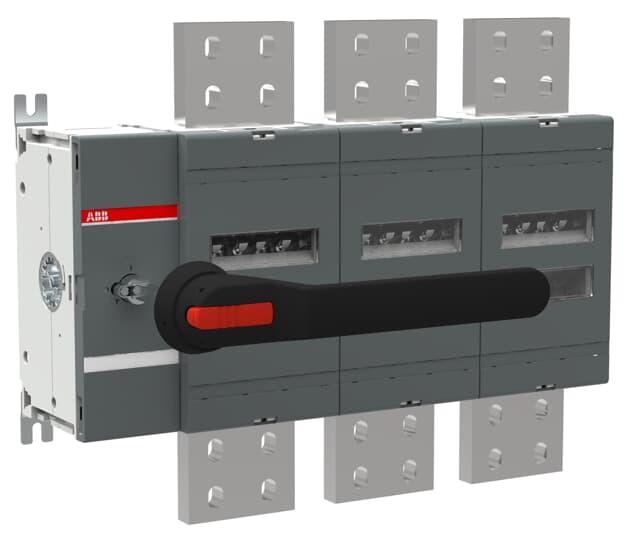

ABB OT4000E03P Disconnector Switch IP65 3800A 3 1000VAC Black Pistol Handle Base Mount
