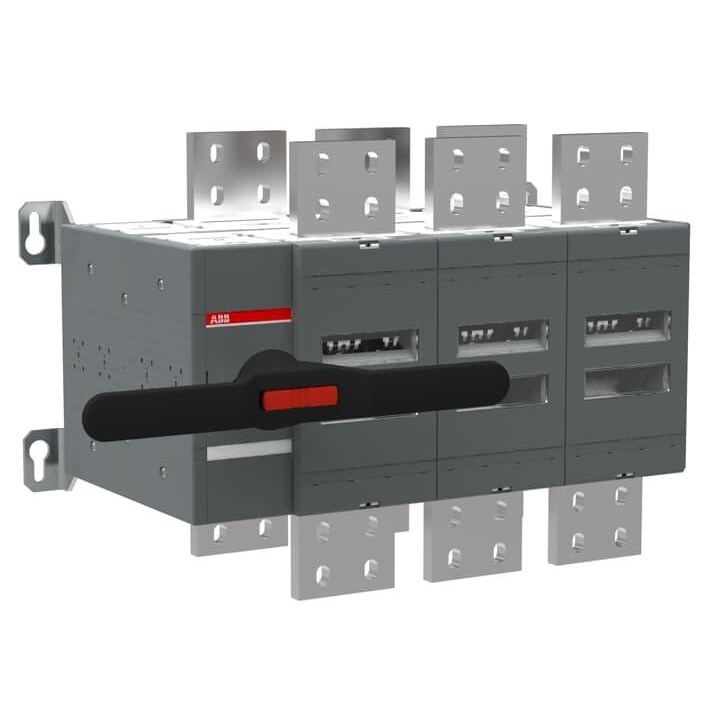

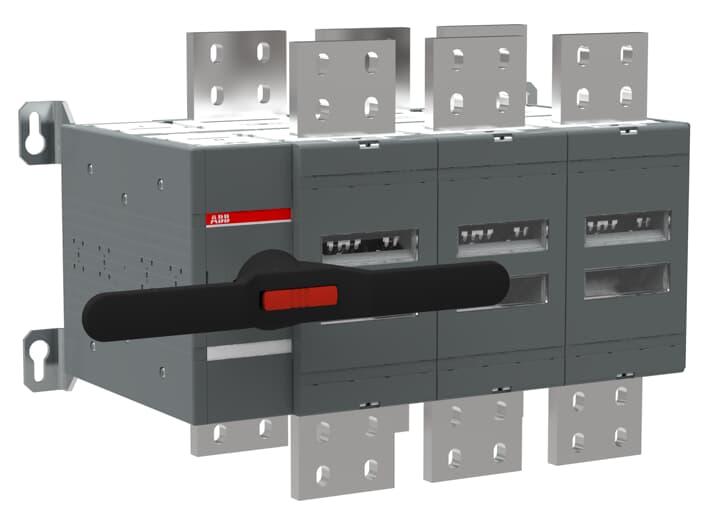

ABB OT3200E03CP Changeover Switch 3200A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT3200E03CP

  • Rated for 3200 A current
  • Compact size: 590x410x369 mm
  • RoHS, REACH, CE approved
  • Withstands 55 kA short circuit
  • Padlockable in O-position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT3200E03CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Permanent Current at AC-21, 400 V
3200A
Rated Short Time Withstand Current (Icw)
55000A
Power Loss
95W
Transition Type
Open
No. of Poles
3P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
325mm
Height
410mm
Weight
71.18kg
Width
590mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
