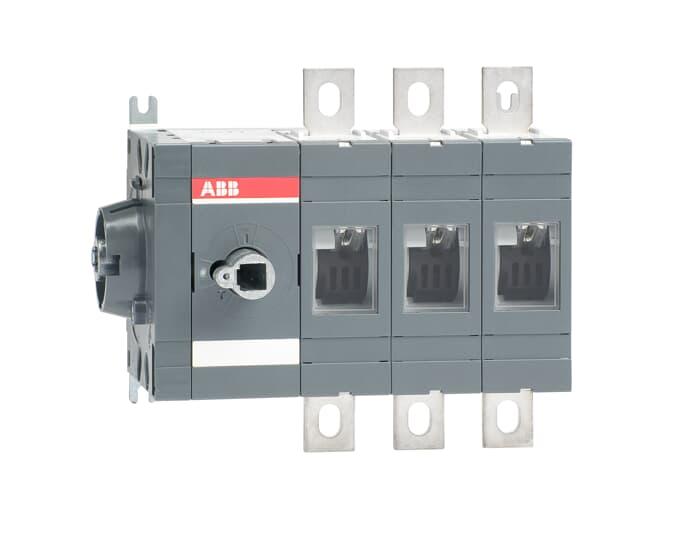

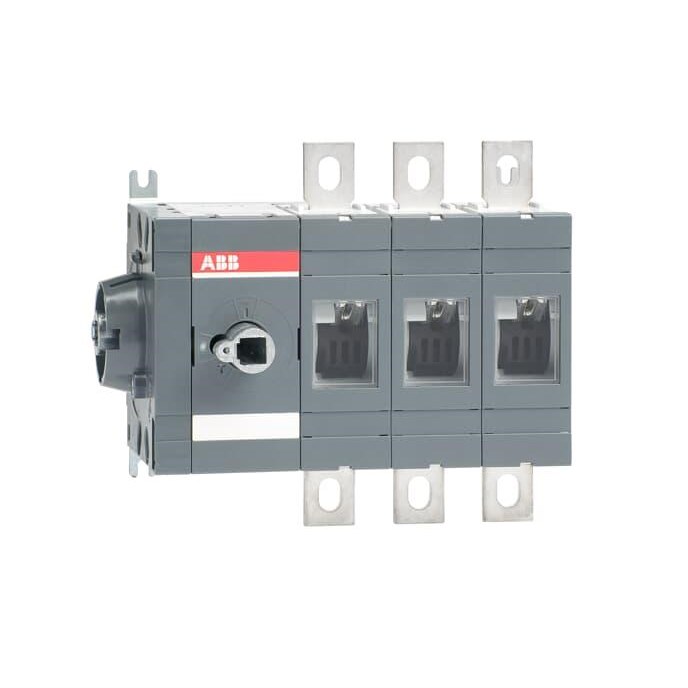

ABB OT315ES03 Disconnector Switch IP65 315A 3 1000VAC Base Mount

Product Code: OT315ES03

  • Base mount load break switch, 315 A rated
  • Complies with IEC 60947-3 standards
  • IP65 protection for harsh environments
  • Suitable for distribution board installations
  • Compact size: 226x185x107 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
180kW
Rated Operational Current AC21-A (Ie)
315A
Rated Operational Current AC22-A (Ie)
315A
Rated Operational Current AC23-A (Ie)
315A
Rated Short Time Withstand Current (Icw)
15000A
Power Loss
6.5W
Special Functions
No
Mechanical Life
16000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
107mm
Height
185mm
Weight
3.2kg
Width
226mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
