Products

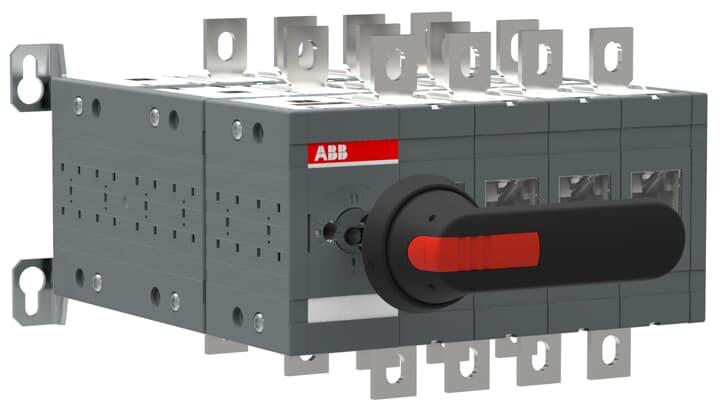

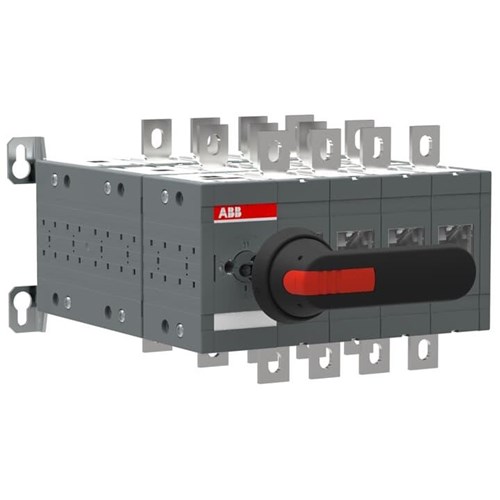

ABB OT315E04YP Bypass Switch 4 1000V 315A 315A 315A 160 kW 220 kW 315 kW Screw Terminal

Product Code: OT315E04YP

  • Rated for 315 A with 4 poles
  • Supports voltages up to 1000 V
  • Compact size: 284x185x306 mm
  • IP20 protection rating
  • Screw clamp terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bypass Switch
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
160kW
Rated Operational Current AC21-A (Ie)
315A
Rated Operational Current AC22-A (Ie)
315A
Rated Operational Current AC23-A (Ie)
315A
Power Loss
6.5W
Transition Type
Open
Mechanical Life
8000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
306mm
Height
185mm
Weight
13.6kg
Width
284mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
