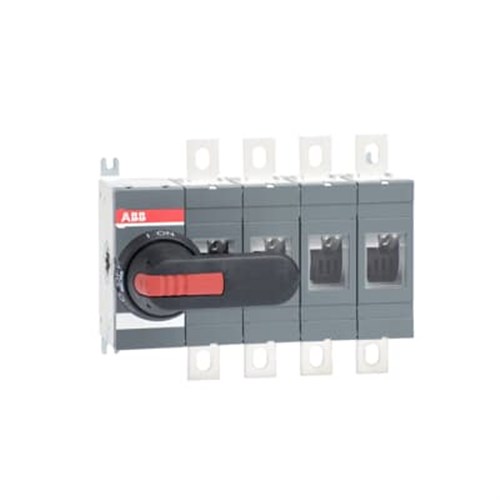

ABB OT315E04P Base Mount Switch 315A 4-P 1000V Black Base Mount

Product Code: OT315E04P

  • Rated for 315 A current
  • Supports up to 1000 V
  • Short circuit capacity of 65 kA
  • Meets IEC, RoHS, REACH standards
  • Compact size: 235x185x107 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
180kW
Rated Operational Current AC21-A (Ie)
315A
Rated Operational Current AC22-A (Ie)
315A
Rated Operational Current AC23-A (Ie)
315A
Rated Short Time Withstand Current (Icw)
15000A
Power Loss
6.5W
Special Functions
No
Mechanical Life
16000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
107mm
Height
185mm
Weight
3.9kg
Width
235mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, BV, CE, DNV GL, GL, LR
