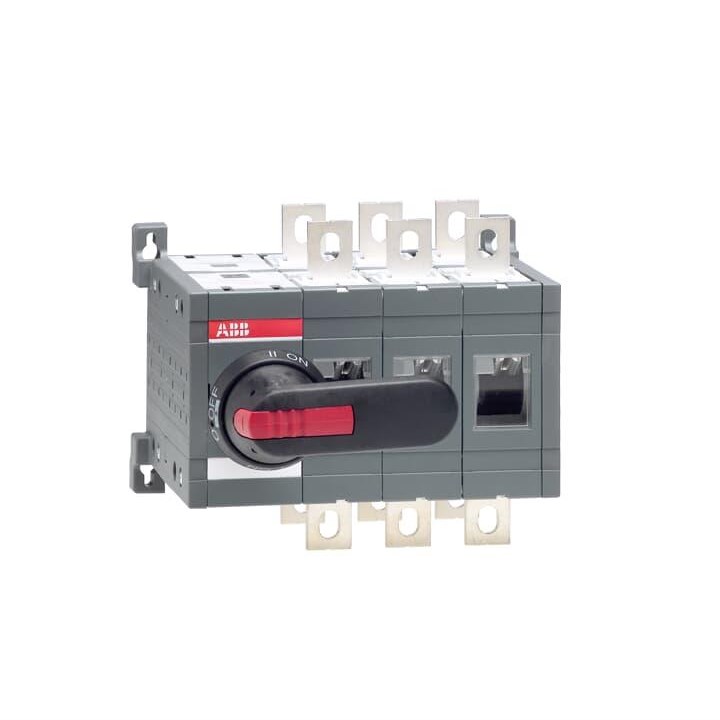

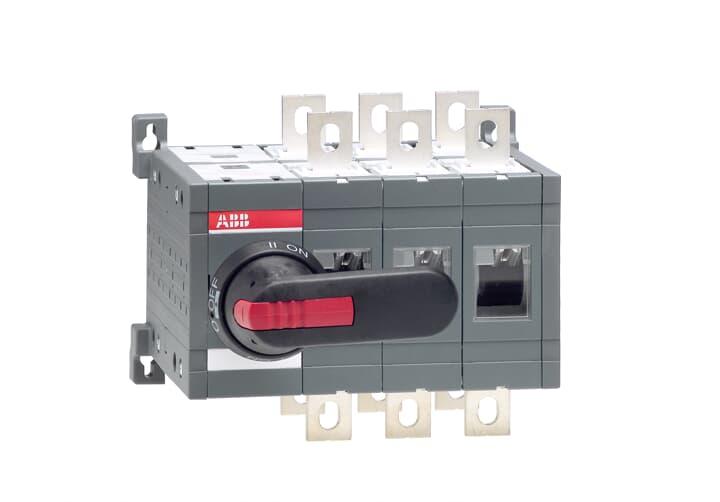

ABB OT315E03CP Changeover Switch 315A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT315E03CP

  • Rated current of 315 A for robust performance
  • Compact size: 221x185x203 mm, weighs 5.9 kg
  • RoHS, REACH, CE, WEEE compliant
  • Suitable for distribution board installation
  • Front mount with pistol handle and interlockable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT315E03CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
160kW
Rated Operational Current AC21-A (Ie)
315A
Rated Operational Current AC22-A (Ie)
315A
Rated Operational Current AC23-A (Ie)
315A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
6.5W
Transition Type
Open
No. of Poles
3P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
203mm
Height
185mm
Weight
6kg
Width
221mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
