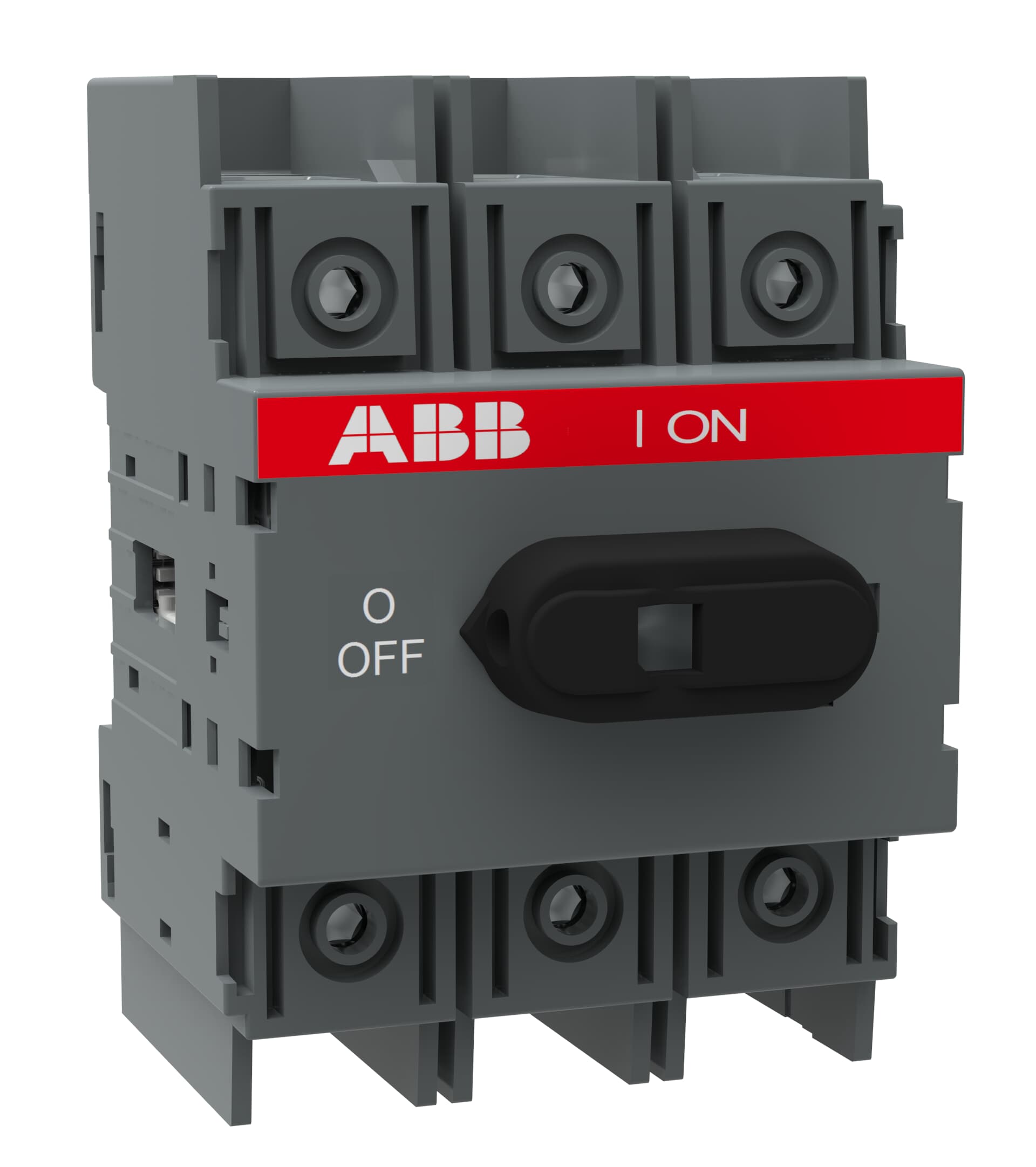

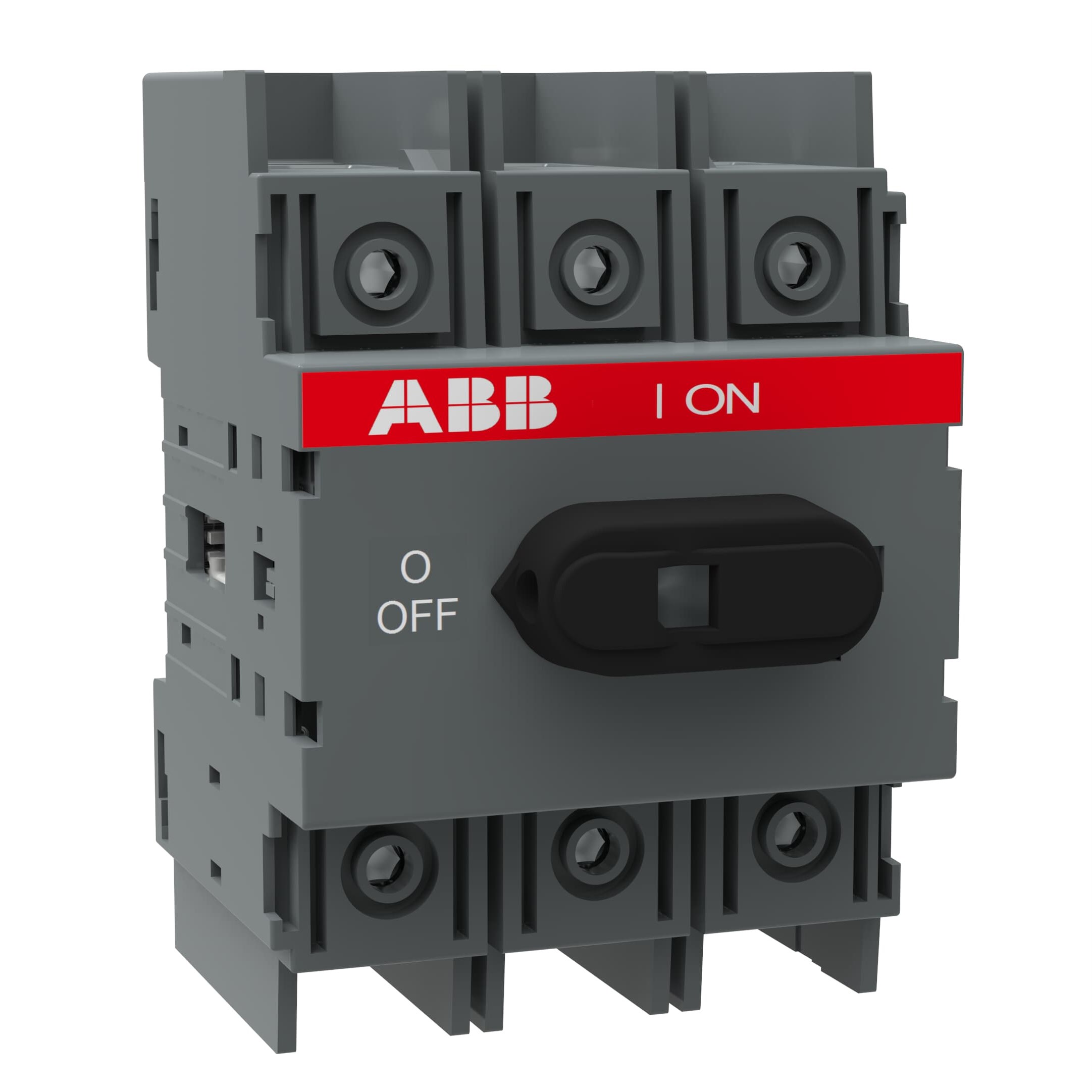

ABB OT30F3 Switch-Disconnector IP20 30A 750V Knob Handle Base Mount

Product Code: OT30F3

  • Main switch with 30 A rated current
  • Compact size: 70x100x74 mm
  • High impulse withstand voltage of 8 kV
  • IP20 protection against solid objects
  • Base mounting with screw clamp terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
18.5kW
Rated Operational Current AC21-A (Ie)
40A
Rated Operational Current AC22-A (Ie)
40A
Rated Operational Current AC23-A (Ie)
40A
Rated Short Time Withstand Current (Icw)
2500A
Power Loss
0.7W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
74mm
Height
100mm
Weight
0.36kg
Width
70mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, UL 98, CSA C22.2 NO.4, IEC 60335-2-40, CE, cULus
